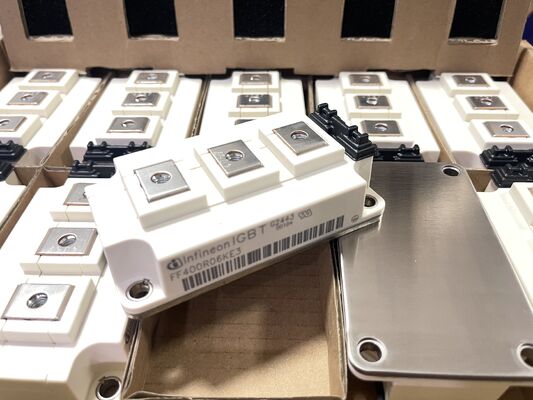

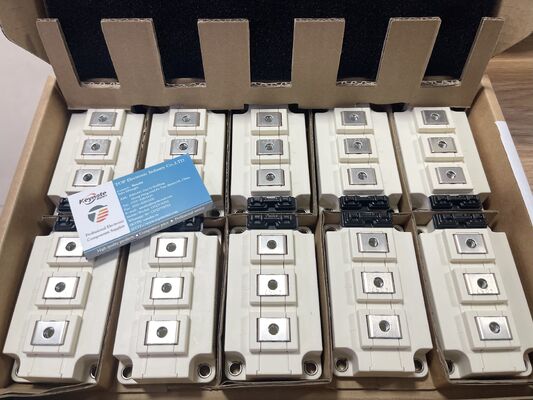

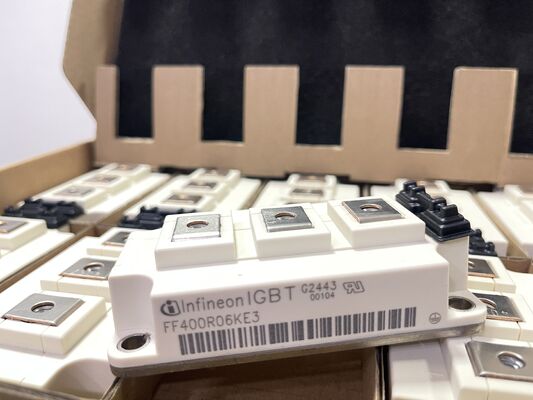

FF400R06KE3HOSA1 600V 400A IGBT half‑bridge module trench stop tech low VCEsat fast switching rugged for inverters and drives

FF400R06KE3HOSA1 600V 400A IGBT half‑bridge module trench stop tech low VCEsat fast switching rugged for inverters and drives

Features

• Half-Bridge Topology – Two IGBTs with anti-parallel diodes in one module, ideal for phase legs of inverters and converters.

• 600V Collector-Emitter Voltage (Vces) – Suitable for 400V AC drives, UPS systems, and industrial power supplies.

• 400A Continuous Current (Ic) – High current capability with 500A at Tc=25°C; total power dissipation 1250W.

• Trench Field Stop IGBT3 Technology – Delivers low conduction losses with typical VCEsat of only 1.45V at 400A.

• Fast & Soft Switching – Optimized for frequencies up to 20 kHz; includes soft-recovery diodes to reduce EMI.

• Low Gate Charge (Qg = 4300 nC) – Simplifies gate drive design and reduces switching power losses.

• Rugged 62mm Isolated Package – Chassis-mountable module with insulated baseplate (2500V isolation), operating range -40°C to +150°C.

Applications

• Industrial Motor Drives – AC drives for pumps, fans, conveyors, compressors, and servo controls.

• Uninterruptible Power Supplies (UPS) – Inverter stages for online double-conversion UPS systems.

• Welding Equipment – Inverter-based welding power sources requiring fast switching and high current.

• Renewable Energy – String and central solar inverters for photovoltaic systems.

• Induction Heating – Power stages for industrial cookers, furnaces, and sealing machines.

• Switch Mode Power Supplies (SMPS) – High-power DC-DC converters for industrial and telecom applications.

• Electric Vehicle (EV) Infrastructure – Auxiliary drives and low-voltage charging station power stages.

Description

The FF400R06KE3HOSA1 is a high-performance IGBT module from Infineon Technologies, part of the 62mm C-series family. It features a half-bridge (dual) configuration consisting of two IGBTs with anti-parallel, soft-recovery emitter-controlled diodes. Utilizing Infineon's advanced Trench Field Stop IGBT3 technology, this module delivers exceptionally low saturation voltage (VCEsat) and superior switching performance. Designed for rugged industrial applications, it is housed in a standard 62mm package with an insulated copper baseplate, offering excellent thermal conductivity and electrical isolation. This module is optimized for high-frequency switching in motor drives, uninterruptible power supplies (UPS), and welding equipment, operating reliably at junction temperatures up to 150°C.

INFORMATION

Drawing
