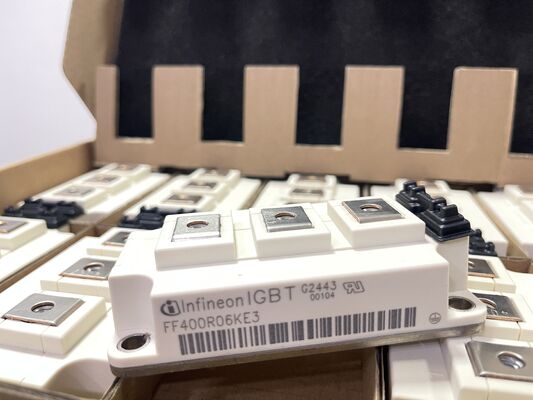

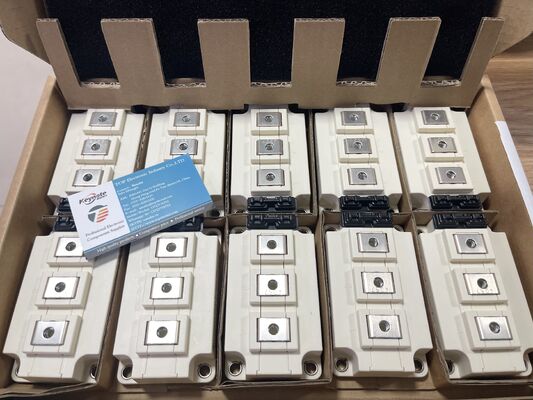

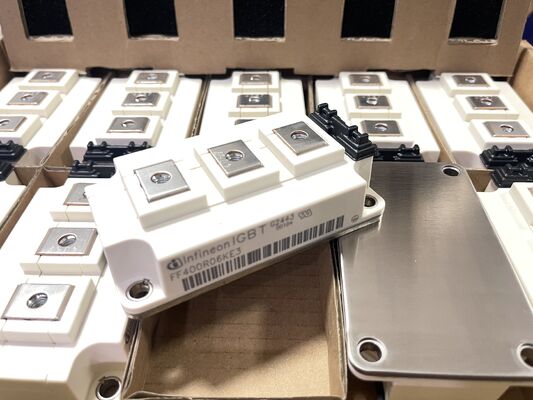

FF400R06KE3HOSA1 IGBT module 600V 400A half-bridge trench stop technology low VCEsat high speed industrial grade

FF400R06KE3HOSA1 IGBT module 600V 400A half-bridge trench stop technology low VCEsat high speed industrial grade

Features

• 600V Collector-Emitter Voltage (Vces) – Suitable for 400V AC drives and power conversion systems.

• 400A Continuous Collector Current (Ic) – Capable of handling high-load industrial motors and inverters.

• Half-Bridge (Two-Pack) Configuration – Integrates two IGBTs with anti-parallel diodes for phase leg topologies.

• Trench Stop IGBT Technology – Delivers low saturation voltage and excellent switching performance.

• Low VCEsat – Reduces conduction losses, improving overall system efficiency.

• High Speed Switching – Low switching losses enable higher frequency operation (e.g., 4-16 kHz typical for motor drives).

• Isolated Package (EconoPACK™ 3) – Simplifies mounting, cooling, and system assembly with press-fit or screw terminals.

Applications

• Motor Drives – AC and servo motor controls for industrial automation, conveyors, pumps, and fans.

• Uninterruptible Power Supplies (UPS) – Inverter stage for online double-conversion UPS systems.

• Welding Equipment – Inverter-based welding power sources requiring fast switching and high current.

• Solar Inverters – Transformerless string inverters for photovoltaic installations.

• Switch Mode Power Supplies (SMPS) – High-power, high-frequency DC-DC converters.

• Induction Heating – Power stages for industrial cookers, furnaces, and sealing equipment.

• Medical Power Supplies – High-reliability converters for MRI, X-ray, and surgical tools.

Description

The FF400R06KE3HOSA1 is a high-power IGBT module from Infineon's EconoPACK™ 3 series. Featuring a half-bridge (two-pack) configuration, this module is designed for high-frequency switching applications requiring low conduction and switching losses. With a collector-emitter voltage of 600V and a continuous collector current of 400A, it is built for demanding industrial power conversion systems. The module incorporates Infineon's advanced Trench Stop IGBT technology together with a soft, fast-recovery anti-parallel emitter-controlled diode. Housed in a rugged, solderable and solderable (with thermal paste) isolated package, it offers excellent thermal performance and reliability for motor drives, inverters, and power supplies.

INFORMATION

Drawing
