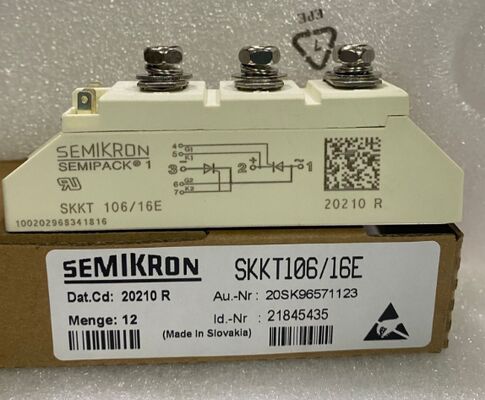

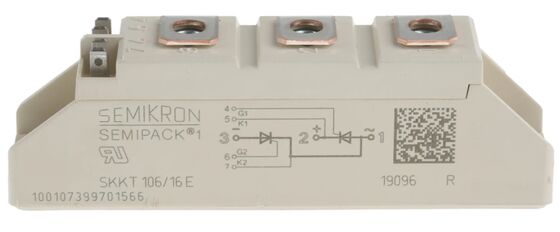

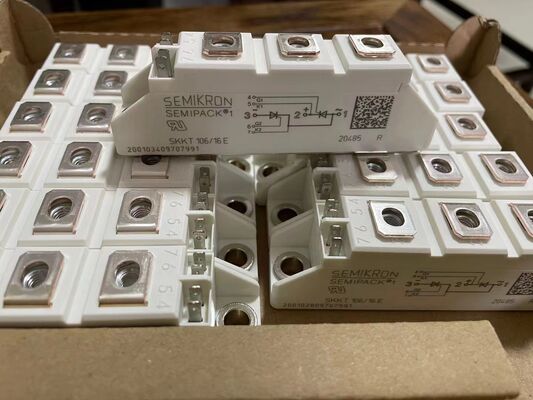

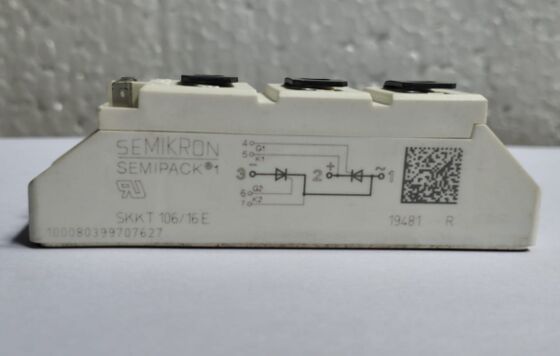

SKKT106/16E 1600V 106A Dual Thyristor Module Low VF 1.35V 2.4kA Surge AlN Ceramic Base Pressure Contacts SEMIPACK1 Isolated UL Certified for Soft Starters and Drives

SKKT106/16E 1600V 106A Dual Thyristor Module Low VF 1.35V 2.4kA Surge AlN Ceramic Base Pressure Contacts SEMIPACK1 Isolated UL Certified for Soft Starters and Drives

Features

• 1600V repetitive peak reverse/off-state voltage (VRRM/VDRM)

• 106A average on-state current (ITAV) per thyristor

• Low forward voltage drop: 1.35V typ (Uf) for high efficiency

• High surge current rating: 2.4kA (IFSM) for robust overload handling

• Dual thyristor configuration with electrical isolation between devices

• Heat transfer through aluminum nitride ceramic isolated metal baseplate

• Precious metal pressure contacts for excellent thermal cycling and reliability

• UL recognized (File No. E63532) for industrial safety compliance

Applications

• AC motor soft starters and speed controls

• Phase-angle control for heating applications (ovens, furnaces)

• DC motor drives and industrial controls

• Uninterruptible Power Supplies (UPS)

• Welding equipment and induction heating

• Professional light dimming and lighting controls

• Industrial power supplies and rectifiers

• Battery chargers and electroplating equipment

Description

The SKKT 106/16E is a 1600V, 106A dual thyristor power module from SEMIKRON-Danfoss, housed in the compact SEMIPACK1 package. It features two isolated thyristors in a single module, designed for AC power control and phase-angle applications. The module utilizes advanced aluminum nitride (AlN) ceramic isolated baseplate technology with precious metal pressure contacts, ensuring excellent thermal dissipation and long-term reliability in space-constrained industrial applications
