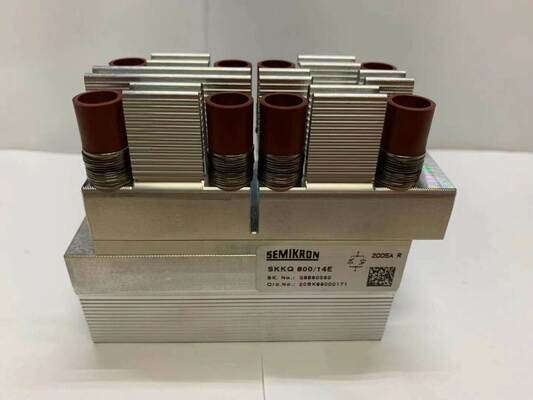

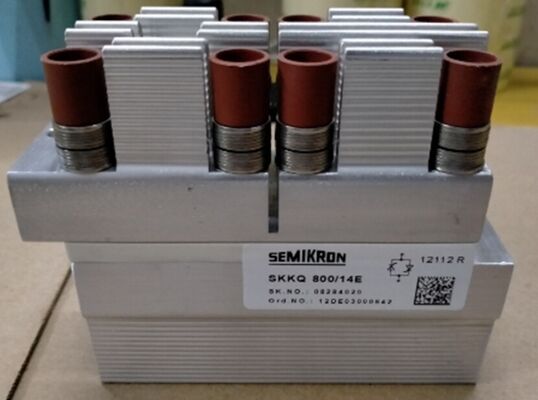

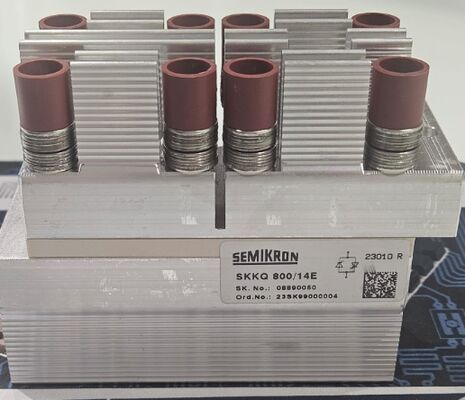

SKKQ800/14E 1400V 800A Single Thyristor Module Fast Switching Low VF 1.37V 12kA Surge AlN Ceramic Base Pressure Contacts Amplifying Gate UL Certified for Soft Starters and Inverters

SKKQ800/14E 1400V 800A Single Thyristor Module Fast Switching Low VF 1.37V 12kA Surge AlN Ceramic Base Pressure Contacts Amplifying Gate UL Certified for Soft Starters and Inverters

Features

• 1400V repetitive peak reverse/off-state voltage (VRRM/VDRM)

• 800A average on-state current (ITAV) with high current handling capability

• Low forward voltage drop: 1.37V max (Ufmax) for reduced conduction losses

• High surge current rating: 12kA (IFSM) for robust overload and short-circuit withstand

• Amplifying gate design for enhanced turn-on dI/dt capability

• Heat transfer through aluminum nitride ceramic isolated metal baseplate

• Precious metal pressure contacts for excellent thermal cycling and reliability

• UL recognized (File No. E63532) for industrial safety compliance

Applications

• AC motor soft starters

• DC motor drives and industrial controls

• Uninterruptible Power Supplies (UPS)

• Inverter and converter systems

• Temperature control for industrial heating (ovens, furnaces)

• Welding equipment and induction heating

• Professional light dimming and studio lighting controls

• High-power rectifiers and power supplies

Description

The SKKQ 800/14E is a 1400V, 800A single thyristor power module from SEMIKRON-Danfoss, housed in the SEMIPACK5 package. It features a single thyristor configuration with amplifying gate design for reliable turn-on performance at high currents. The module utilizes advanced aluminum nitride (AlN) ceramic isolated baseplate technology combined with precious metal pressure contacts, ensuring excellent thermal dissipation and long-term reliability in demanding industrial applications

INFORMATION

Drawing
