IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives

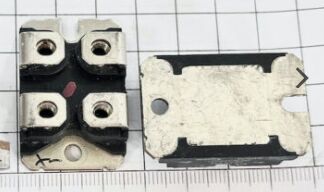

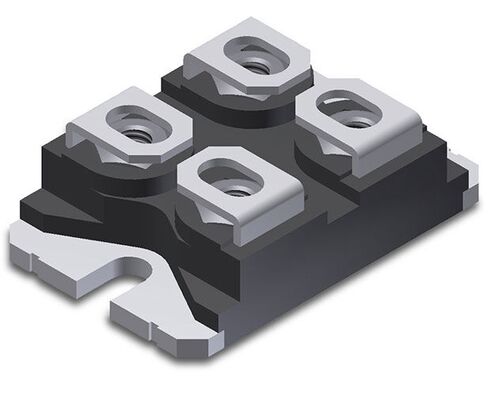

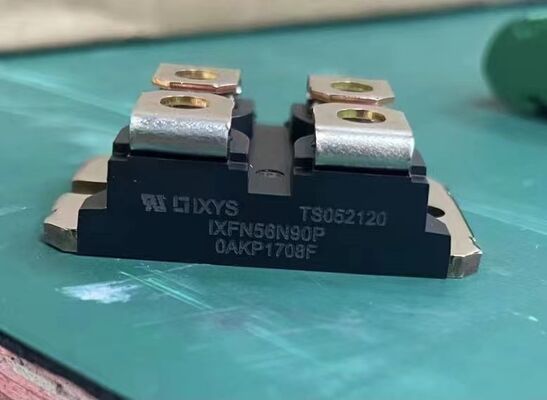

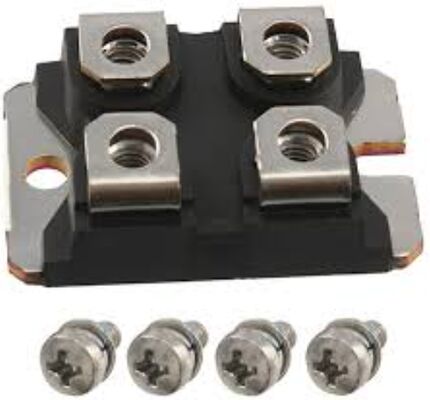

Large Image : IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives

Product Details:

Place of Origin:	China
Brand Name:	IXYS
Certification:	CE, GCF, ROHS
Model Number:	IXFN56N90P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time:	3-5 working days after received the payment
Payment Terms:	T/T, Western Union,
Supply Ability:	1000pcs per month

Contact Now

Detailed Product Description

Type:	IGBT Module	Package:	New And OriginalF00R12KT4: 1200V 200A IGBT Module, Low VCE(sat), High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives And High Power UPS
Condition:	New And Original	Lead Free Status:	RoHS Compliant
Shipping By:	DHL\UPS\Fedex\EMS\HK Post,DHL,UPS,Fedex And EMS

IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives

Features

International Standard Package
miniBLOC, with Aluminium Nitride Isolation
Low RDS(on) and QG
Avalanche Rated
Low Package Inductance
Fast Intrinsic Rectifier

Applications

High Power Density
Easy to Mount
Space Savings

Description

Switch-Mode and Resonant-Mode Power Supplies

DC-DC Converters

Laser Drivers

AC and DC Motor Drives

Robotics and Servo Controls

INFORMATION

category	Discrete semiconductor products Transistors FET,MOSFET Single FETs, MOSFETs
manufacturer	IXYS
series	HiPerFET™, Polar
Packaging	Pipe fittings
Part status	On sale
FET type	N channel
Technology	MOSFETs (Metal Oxides)
Drain Source Voltage (Vdss)	900 V
Current at 25°C - Continuous Drain (ID)	56A(Tc)
Drive Voltage (Max RDS On, Min RDS ON)	10V
On-resistance at different IDs and Vgs (max)	135 mOhm @ 28A, 10V
Vgs(th) for different IDs (maximum)	6.5V @ 3mA
Gate charge (Qg) at different Vgs (max)	375 nC @ 10 V
Vgs (max)	±30V
Input Capacitance (CIS) at Different Vds (Max)	23000 pF @ 25 V
FET function	-
Power Dissipation (Max)	1000W(Tc)
Operating temperature	-55°C ~ 150°C(TJ)
grade	-
Qualifications	-
Mounting type	Base mounting
Vendor device packages	SOT-227B
Package/Enclosure	SOT-227-4,miniBLOC

Drawing

IXFN56N90P 900V 56A N-Channel MOSFET Ultra-Low Rds(on) 135mΩ HiPerFET™ Polar Technology Fast Body Diode Low Qg High-Speed Switching SOT-227B Package for UPS and Drives 0

Our advantage :phones, PDAand#39;s, notebook comput.ers

High quality products --- our offers are 100% new and original, ROHS
Competitive price --- good Purchase channels with good price.
Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
Adequate inventory --- With the support of our strong Purchasing team,
Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
