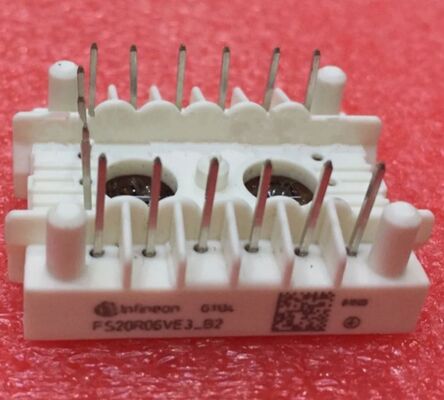

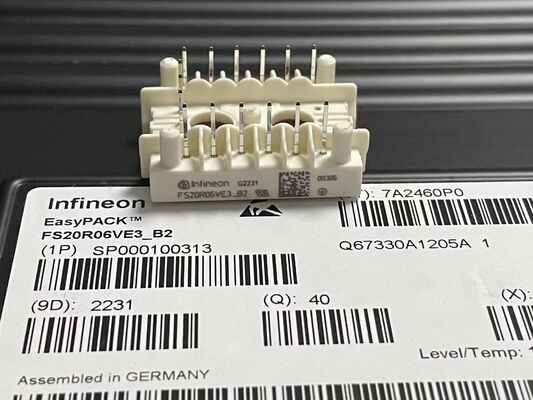

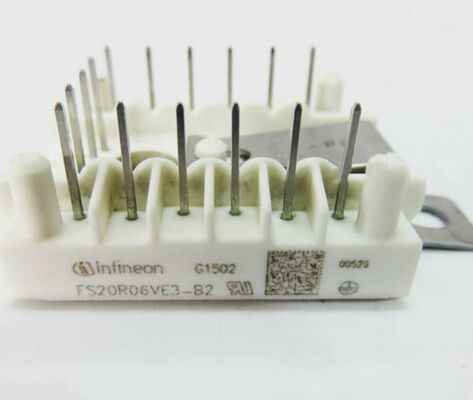

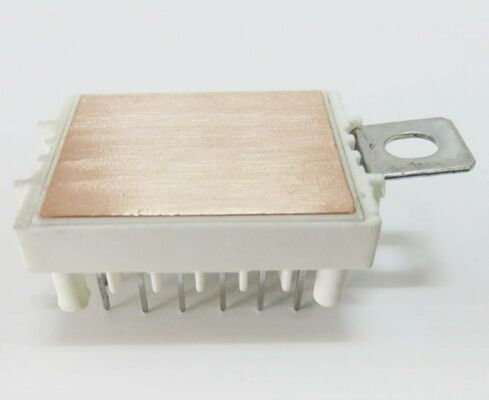

FS20R06VE3_B2 600V 20A IGBT Module Trenchstop Technology Low VCEsat Fast Switching Integrated NTC PressFIT Contact High Power Density ECONOIM-3 for Drives

FS20R06VE3_B2 600V 20A IGBT Module Trenchstop Technology Low VCEsat Fast Switching Integrated NTC PressFIT Contact High Power Density ECONOIM-3 for Drives

Features

• Technology: Utilizes TRENCHSTOP™ IGBTs combined with an robust, soft-switching emitter controlled diode, ensuring minimal switching losses and excellent thermal performance.

• Low Saturation Voltage: Features a very low VCE(sat) (typically 1.45V), reducing conduction losses and improving overall system efficiency.

• Module Configuration: Integrated half-bridge (2-in-1) topology with a compact, standard ECONOIM-3 package for easy assembly and interchangeability.

• Integrated NTC: Built-in NTC thermistor provides accurate real-time temperature monitoring for reliable thermal management and protection.

• PressFIT Technology: Equipped with PressFIT mounting pins, enabling solder-free, vibration-resistant, and environmentally friendly PCB assembly.

• Isolation: Offers high creepage and clearance distances with 2500V RMS isolation (1 min), ensuring safe operation in high-voltage applications.

Applications

• Industrial Motor Drives: Ideal for servo drives, main spindle drives, and general-purpose variable frequency drives (VFDs) up to approximately 7.5kW.

• Power Supplies: Suitable for auxiliary power supplies and uninterruptible power systems (UPS).

• Air Conditioning: Widely used in commercial and industrial HVAC compressor drives.

• Automation: Perfect for robotics and factory automation equipment requiring compact and efficient power stages.

Description

The FS20R06VE3_B2 is a high-performance 600V / 20A IGBT power module from Infineon's ECONOIM-3 series, designed to deliver exceptional efficiency and reliability in demanding industrial environments. It leverages advanced TRENCHSTOP™ IGBT technology, providing a perfect balance between low conduction losses and high-speed switching.
