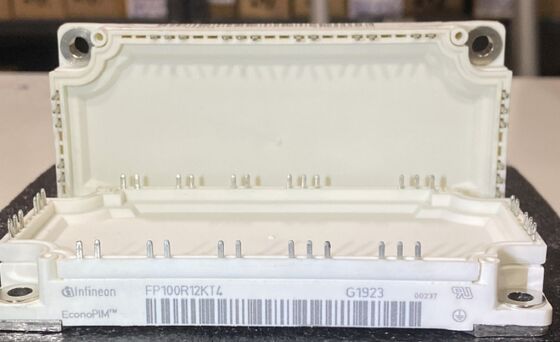

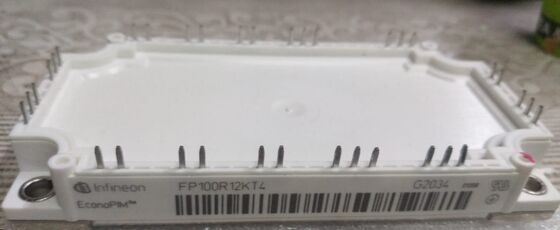

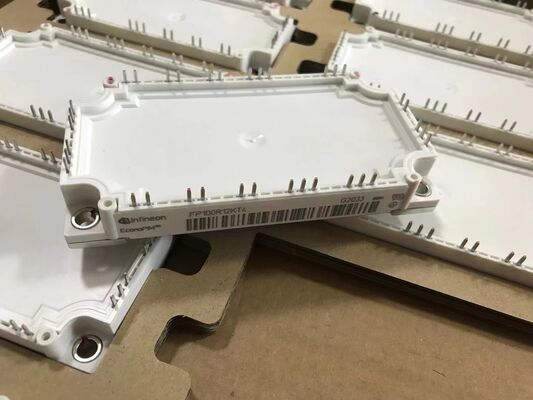

FP100R12KT4 1200V 100A PIM IGBT Module TRENCHSTOP™ IGBT4 Low VCE(sat) 2.1V Integrated Rectifier and Brake Copper Baseplate NTC Low Switching Loss For Motor Drives

FP100R12KT4 1200V 100A PIM IGBT Module TRENCHSTOP™ IGBT4 Low VCE(sat) 2.1V Integrated Rectifier and Brake Copper Baseplate NTC Low Switching Loss For Motor Drives

Features

• HighPowerandThermalCyclingCapability

• IntegratedNTCtemperaturesensor

• CopperBasePlate

• PressFITContactTechnology

• StandardHousing

Applications

• AuxiliaryInverters

• MotorDrives

• ServoDrives

Description

The FP100R12KT4 is a highly integrated 1200V, 100A Power Integrated Module (PIM) from Infineon's EconoPIM™ 3 family . It combines a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper in a single, compact, and isolated module . Built with advanced TRENCHSTOP™ IGBT4 and Emitter Controlled 4 diode technology, it is engineered for low switching losses and high efficiency . The module features a low stray inductance design, a copper base plate for optimized heat spread, and an integrated NTC temperature sensor for accurate thermal monitoring . It supports high switching frequency operation and is available with solderable pins or PressFIT technology

INFORMATION

Drawing
