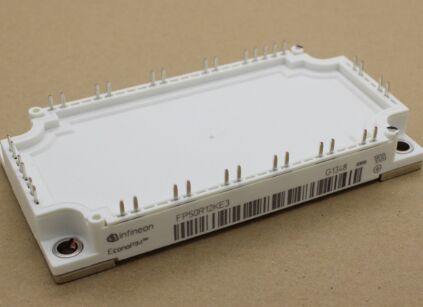

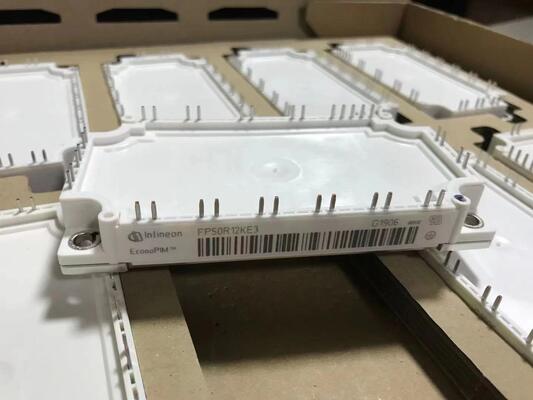

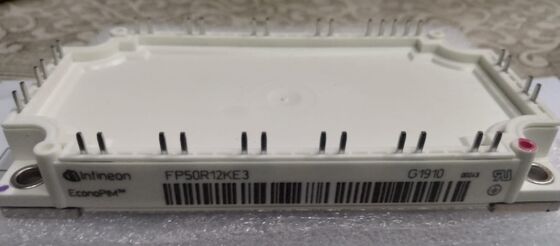

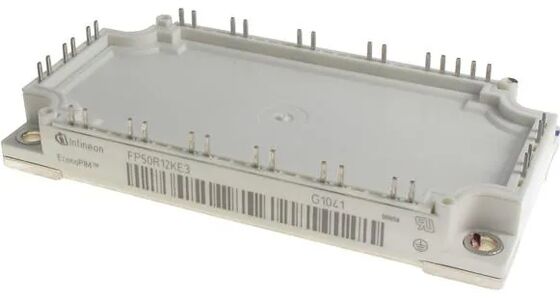

FP50R12KE3 1200V 50A PIM IGBT Module TRENCHSTOP™ IGBT3 Low VCE(sat) Low Switching Loss Integrated Rectifier and Brake Copper Baseplate NTC For Motor Drives

FP50R12KE3 1200V 50A PIM IGBT Module TRENCHSTOP™ IGBT3 Low VCE(sat) Low Switching Loss Integrated Rectifier and Brake Copper Baseplate NTC For Motor Drives

Features

• 1200V / 50A PIM (Power Integrated Module)

• Integrated Topology: 3-Phase Rectifier, 3-Phase IGBT Inverter, Brake Chopper

• Advanced TRENCHSTOP™ IGBT3 Technology

• Low Stray Inductance Module Design

• Copper Base Plate for Optimized Heat Spread

• Low Switching Losses and High Switching Frequency Capability

• Integrated NTC Temperature Sensor

• High Reliability and Power Density

• Solderable Pins and RoHS-Compliant

Applications

• Motor Control and Industrial Drives: For pumps, fans, compressors, and general-purpose AC drives .

• Servo Drives and Motion Control Systems .

• Uninterruptible Power Supplies (UPS) .

• Solar Inverters and Renewable Energy Systems .

• Welding Equipment .

• HVAC Systems

Description

The FP50R12KE3 is a highly integrated 1200V, 50A Power Integrated Module (PIM) from Infineon's EconoPIM™ 3 family . It combines a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper in a single, compact, and isolated module . Built with advanced TRENCHSTOP™ IGBT3 technology, it is engineered for low saturation voltage and fast switching . The module features a low stray inductance design, a copper base plate for optimized heat spread, and an integrated NTC temperature sensor for accurate thermal monitoring . It offers low switching losses and supports high switching frequency operation . The module is RoHS-compliant and designed for high reliability and power density
