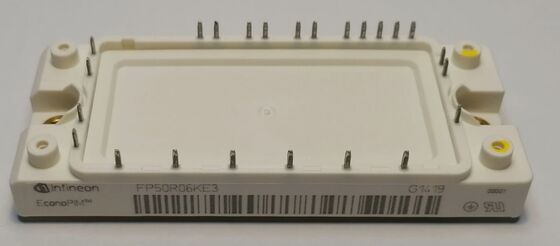

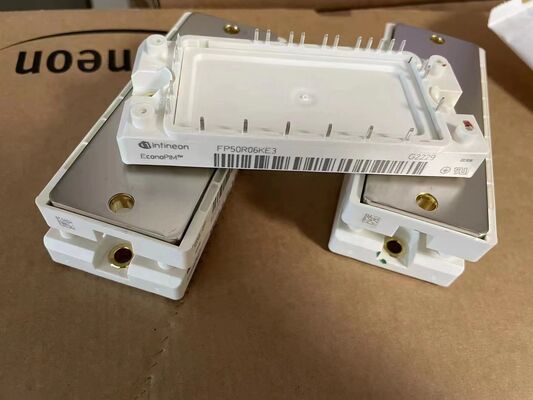

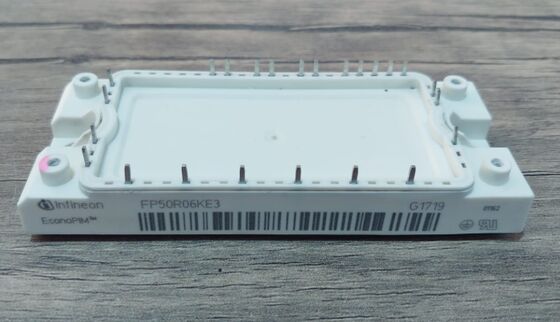

FP50R06KE3 600V 50A PIM Module Low VCE(sat) Low Switching Loss Integrated NTC Copper Baseplate High Switching Frequency For Motor Drives and UPS

FP50R06KE3 600V 50A PIM Module Low VCE(sat) Low Switching Loss Integrated NTC Copper Baseplate High Switching Frequency For Motor Drives and UPS

Features

• 600V / 50A PIM (Power Integrated Module)

• Integrated Topology: 3-Phase Rectifier, 3-Phase Inverter, Brake Chopper

• Advanced Trench/Fieldstop IGBT3 and Emitter Controlled 3 Diode

• Low Switching Losses for High Efficiency

• Low Stray Inductance Module Design

• Copper Base Plate for Optimized Heat Spread

• Integrated NTC Temperature Sensor

• High Switching Frequency Capability

• Compact EconoPIM™ 2 Housing with Solderable Pins

Applications

• Industrial Motor Drives: For pumps, fans, compressors, and general-purpose AC drives

• Uninterruptible Power Supplies (UPS)

• Renewable Energy Systems (e.g., solar inverters)

• Welding Equipment

• Power Supply Units

• Medical Equipment

• Home Appliances

Description

The FP50R06KE3 is a highly integrated 600V, 50A Power Integrated Module (PIM) from Infineon's EconoPIM™ 2 family . It combines a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper in a single, compact, and isolated module . Built with advanced Trench/Fieldstop IGBT3 and Emitter Controlled 3 diode technology, it is engineered for low switching losses and high efficiency . The module features an integrated NTC temperature sensor for accurate thermal monitoring, a copper base plate for optimized heat spread, and is designed for high reliability and power density . It supports an extended operating temperature up to 150°C or 175°C depending on configuration
