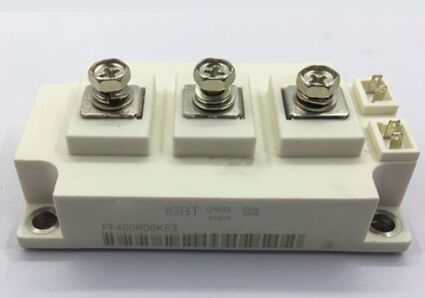

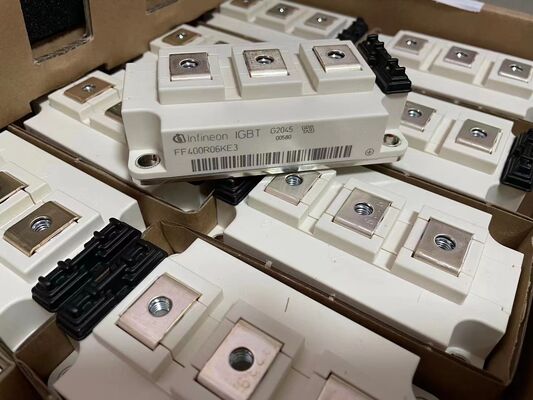

FF400R06KE3 600V 400A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

FF400R06KE3 600V 400A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

Features

• High-Current IGBT Module: 600V / 400A

• Low VCE(sat) (Low Conduction Loss)

• Optimized Switching Losses

• High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Construction and Reliability

Applications

• High-Current Industrial Motor Drives: For large pumps, fans, compressors, and conveyor systems.

• High-Power Uninterruptible Power Supplies (UPS): Medium-voltage, high-current three-phase systems.

• Welding Equipment and High-Current Power Supplies.

• Industrial Inverters and Frequency Converters.

• Power Conversion Systems for specialized machinery.

Description

The FF400R06KE3 is a high-current IGBT module designed for demanding industrial applications requiring substantial power handling at medium voltage levels. It features a 600V blocking voltage and a high continuous current rating of 400A. Utilizing advanced IGBT and freewheeling diode technology, it achieves a low collector-emitter saturation voltage (VCE(sat)) to minimize conduction losses and offers optimized switching characteristics for efficient operation. The module is built for industrial robustness, featuring high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package to ensure reliable performance in high-current environments such as motor drives and UPS systems.

INFORMATION

Drawing
