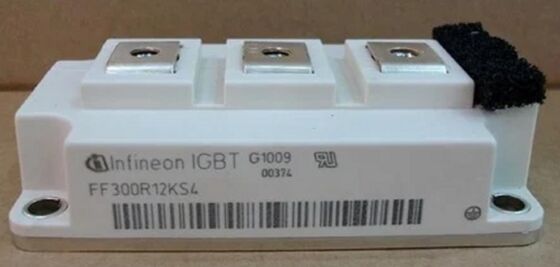

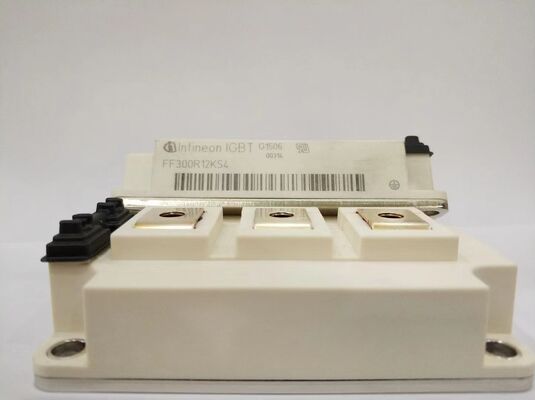

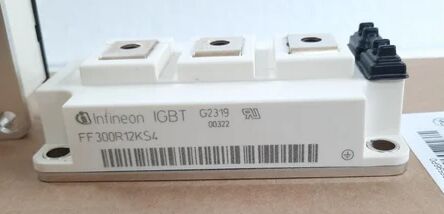

FF300R12KS4 1200V 300A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and High Power UPS

FF300R12KS4 1200V 300A IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and High Power UPS

Features

• High-Power Dual IGBT Module

• Voltage/Current Rating: 1200V / 300A

• Advanced IGBT and Diode Chip Technology

• Low VCE(sat) (Low Conduction Loss)

• Low Switching Losses

• High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Reliability

Applications

• High-Power Industrial Motor Drives: For large pumps, fans, compressors, and heavy machinery.

• High-Capacity Uninterruptible Power Supplies (UPS): For data centers and critical industrial facilities.

• Solar Inverters: Central and string inverters for utility-scale photovoltaic systems.

• Welding and High-Current Power Supply Equipment.

• Power Quality Systems such as Active Power Filters (APF).

Description

The FF300R12KS4 is a high-performance dual IGBT module engineered for robust and efficient power conversion in demanding industrial applications. It provides a high voltage rating of 1200V and a substantial current rating of 300A. Utilizing advanced IGBT and freewheeling diode chip technology, this module achieves an excellent balance of low collector-emitter saturation voltage (VCE(sat)) for reduced conduction losses and optimized switching characteristics for high efficiency. It is designed for industrial durability, featuring high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package design to ensure reliable and stable operation in high-power systems such as heavy-duty motor drives and large UPS inverters.
