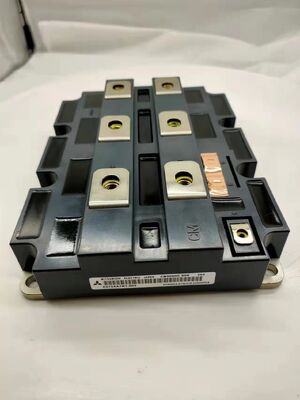

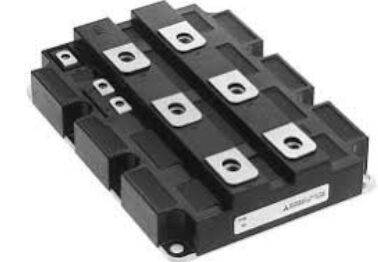

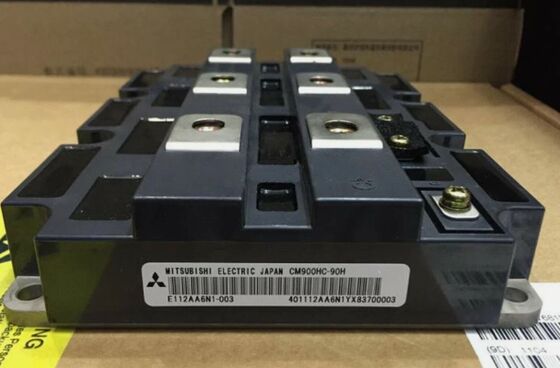

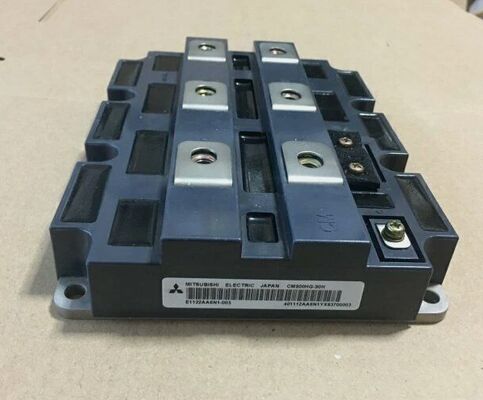

CM900HC-90H 900V 900A High Current IGBT Module Low VCE(sat) 2.7V High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and Mega UPS

CM900HC-90H 900V 900A High Current IGBT Module Low VCE(sat) 2.7V High Short Circuit Ruggedness Low Switching Loss High Isolation For Heavy Industrial Drives and Mega UPS

Features

• Megawatt-Class Ultra-High-Current IGBT Module

• Voltage/Current Rating: 900V / 900A

• State-of-the-Art IGBT and Diode Chip Technology

• Ultra-Low VCE(sat) (Minimal Conduction Loss)

• Optimized Low Switching Losses

• Unmatched Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package for Clean Switching

• Advanced Thermal Management & Integrated NTC

• Designed for Maximum System Uptime and Reliability

Applications

• Ultra-High-Power Industrial Drives: For giant motors in steel rolling, marine propulsion, mine hoists, and large compressors.

• Critical High-Power UPS Systems: Protecting mega data centers, financial trading hubs, and semiconductor fabrication plants.

• Large-Scale Energy Storage (BESS) Power Conversion Systems (PCS).

• High-Power Traction Drives for locomotives and large electric vehicles.

• Grid-Forming Inverters and Specialized High-Power Test Equipment.

Description

The CM900HC-90H is a flagship, ultra-high-current dual IGBT module designed for the pinnacle of megawatt-scale power conversion in heavy industry and energy infrastructure. It delivers a robust voltage rating of 900V and an exceptional current capability of 900A, making it a cornerstone for systems where extreme power density and reliability are critical. Utilizing the most advanced generation of IGBT and diode chip technology, it achieves an ultra-low collector-emitter saturation voltage (VCE(sat)) to drastically reduce conduction losses and optimized switching characteristics for maximum system efficiency. The module is engineered for unparalleled ruggedness, featuring unmatched short-circuit withstand capability, excellent electrical isolation, and a low-inductance package design to ensure absolute stability and longevity in the most demanding high-stress environments.
