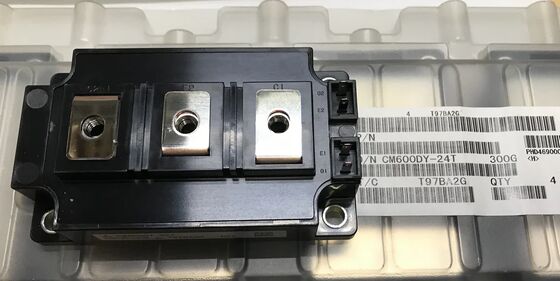

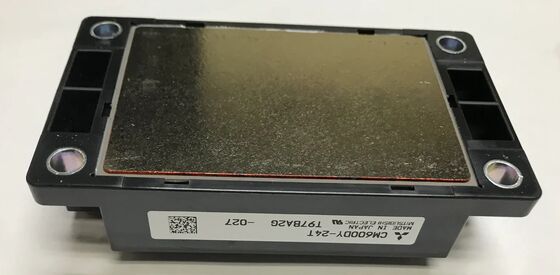

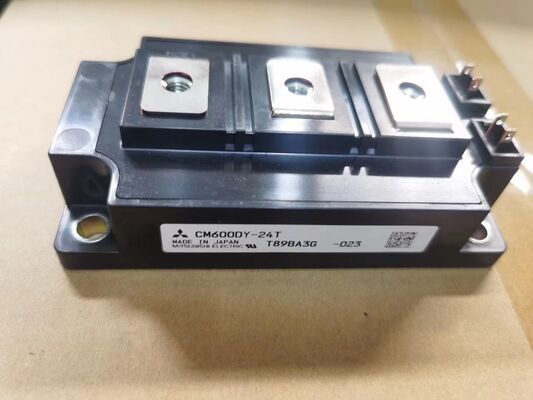

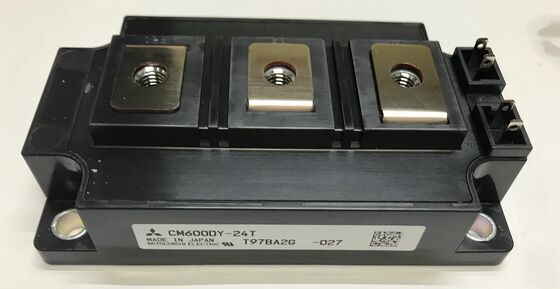

CM600DY-24T 1200V 600A Dual IGBT Module Low VCE(sat) 2.7V High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

CM600DY-24T 1200V 600A Dual IGBT Module Low VCE(sat) 2.7V High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

Features

• Ultra-High-Power Dual IGBT Module

• Voltage/Current Rating: 1200V / 600A

• Advanced IGBT and Diode Chip Technology

• Very Low VCE(sat) (Extremely Low Conduction Loss)

• Low Switching Losses

• Very High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Robustness for Critical Applications

Applications

• Heavy Industrial Motor Drives: For very large pumps, compressors, rolling mills, and mining equipment.

• High-Capacity Uninterruptible Power Supplies (UPS): For mega data centers and critical industrial infrastructure.

• Solar Inverters: Central inverters for utility-scale photovoltaic power plants.

• Power Conversion Systems (PCS) for large-scale battery energy storage (BESS).

• High-Power Welding and Electrolysis Equipment.

Description

The CM600DY-24T is a robust, ultra-high-current dual IGBT module engineered for the most demanding megawatt-class power conversion applications in heavy industry. It delivers a high voltage rating of 1200V combined with an exceptional current capability of 600A. Utilizing the latest generation of IGBT and freewheeling diode chip technology, this module achieves an optimal balance between very low collector-emitter saturation voltage (VCE(sat)) for minimal conduction losses and optimized switching characteristics for high overall efficiency. It is designed for ultimate industrial ruggedness, featuring very high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package to ensure stable and reliable operation under extreme conditions in high-stress environments.
