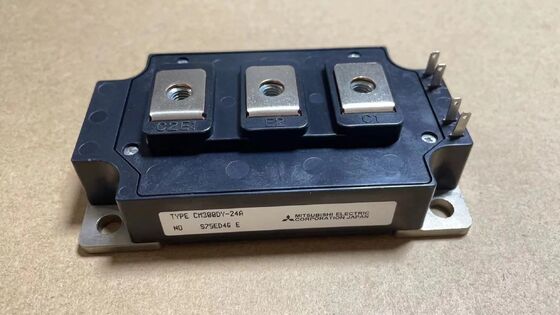

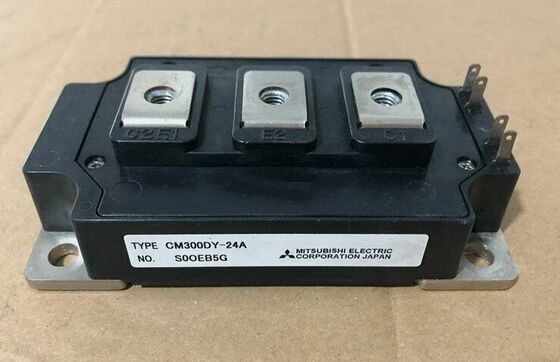

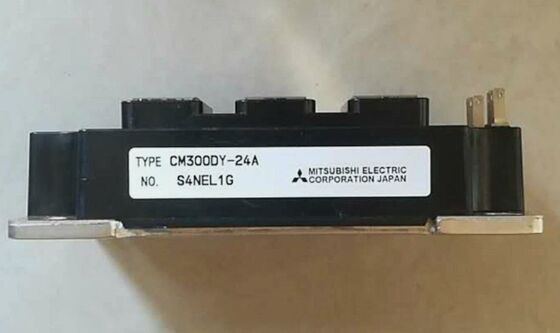

CM300DY-24A 1200V 300A Dual IGBT Module Low VCE(sat) 2.7V Low Switching Loss High Short Circuit Ruggedness High Isolation For Heavy Industrial Drives and UPS

CM300DY-24A 1200V 300A Dual IGBT Module Low VCE(sat) 2.7V Low Switching Loss High Short Circuit Ruggedness High Isolation For Heavy Industrial Drives and UPS

Features

• High-Power Dual IGBT Module

• Voltage/Current Rating: 1200V / 300A

• Advanced IGBT and Diode Chip Technology

• Low VCE(sat) (Low Conduction Loss)

• Low Switching Losses

• High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Reliability

Applications

• High-Power Industrial Motor Drives: For large pumps, fans, compressors, and heavy machinery.

• High-Capacity Uninterruptible Power Supplies (UPS): For data centers and critical industrial facilities.

• Solar Inverters: Central and string inverters for utility-scale photovoltaic systems.

• Welding and High-Current Power Supply Equipment.

• Power Quality Systems such as Active Power Filters (APF).

Description

The CM300DY-24A is a high-performance dual IGBT module engineered for robust and efficient power conversion in demanding industrial applications. It provides a high voltage rating of 1200V and a substantial current rating of 300A. Utilizing advanced IGBT and freewheeling diode chip technology, this module achieves an excellent balance of low collector-emitter saturation voltage (VCE(sat)) for reduced conduction losses and optimized switching characteristics for high efficiency. It is designed for industrial durability, featuring high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package design to ensure reliable and stable operation in high-power systems such as heavy-duty motor drives and large UPS inverters.
