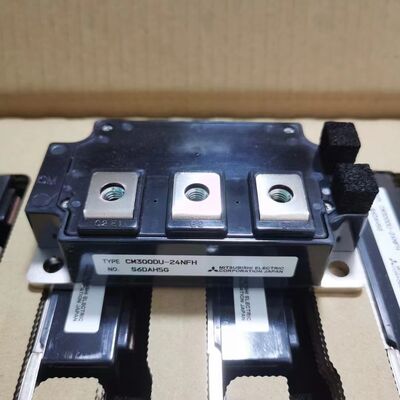

CM300DU-24NFH 1200V 300A Dual IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

CM300DU-24NFH 1200V 300A Dual IGBT Module Low VCE(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation For Industrial Motor Drives and High Power UPS

Features

• High-Power Dual IGBT Module

• Voltage/Current Rating: 1200V / 300A

• Advanced IGBT and Diode Chip Technology

• Low VCE(sat) (Very Low Conduction Loss)

• Low Switching Losses

• Very High Short-Circuit Ruggedness (SCWT)

• High Isolation Voltage

• Low-Inductance Package Design

• Integrated Temperature Sensor (NTC)

• Industrial Grade Robustness and Reliability

Applications

• High-Power Industrial Motor Drives: For large pumps, fans, compressors, and heavy machinery.

• High-Capacity Uninterruptible Power Supplies (UPS): For data centers and critical industrial facilities.

• Solar Inverters: Central and string inverters for utility-scale photovoltaic systems.

• Welding and High-Current Power Supply Equipment.

• Power Quality Systems such as Active Power Filters (APF).

Description

The CM300DU-24NFH is a robust, high-current dual IGBT module engineered for demanding, high-power industrial applications. It delivers a high voltage rating of 1200V combined with a substantial current capability of 300A. Utilizing advanced IGBT and freewheeling diode chip technology, it achieves an optimal balance between low collector-emitter saturation voltage (VCE(sat)) for minimal conduction losses and optimized switching characteristics for high efficiency. The module is designed for ultimate industrial ruggedness, featuring very high short-circuit withstand capability, excellent electrical isolation, and a low-inductance package to ensure stable and reliable operation in high-stress environments such as heavy-duty motor drives and large UPS systems.

INFORMATION

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
