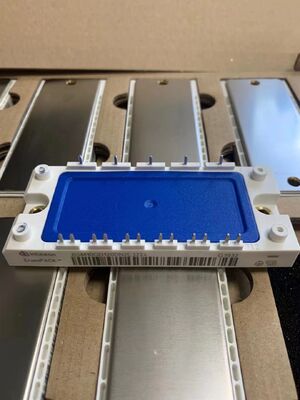

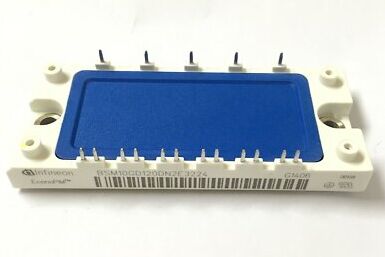

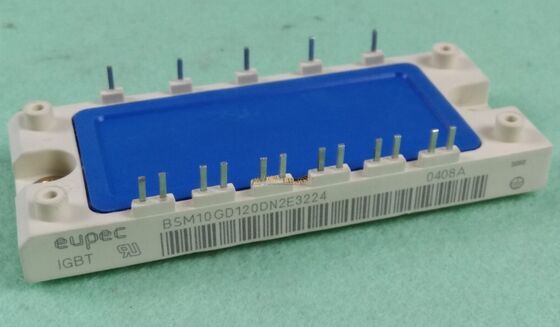

BSM10GD120DN2E3224 1200V 10A IGBT Module Low VCE(sat) 1.7V Integrated Driver IC High Short Circuit Capability Compact DIP Package For Motor Drives and Inverters

BSM10GD120DN2E3224 1200V 10A IGBT Module Low VCE(sat) 1.7V Integrated Driver IC High Short Circuit Capability Compact DIP Package For Motor Drives and Inverters

Features

• Compact Intelligent Power Module (IPM)

• Power Rating: 1200V / 10A

• Integrated 3-Phase IGBT Inverter Bridge with Gate Drivers

• Low VCE(sat) IGBTs (Low Conduction Loss)

• Built-in Protection: Under-Voltage Lockout (UVLO), Short-Circuit, Over-Temperature

• Isolated DIP Package

• Low-Electromagnetic-Interference (Low-EMI) Design

• Simplifies System Design and Assembly

• High Reliability

Applications

• Small AC Motor Drives: For appliances (e.g., refrigerator compressors, washing machine pumps), fans, and light industrial machinery.

• Low-Power Inverters and Frequency Converters.

• General-Purpose Power Conversion Stages.

Description

The BSM10GD120DN2E3224 is a compact, low-power Intelligent Power Module (IPM) that integrates a complete three-phase IGBT inverter bridge, gate drivers, and protection circuitry into a single, isolated DIP package. Rated for 1200V and 10A, it is specifically designed to simplify and enhance the reliability of small motor drive and inverter systems. The module utilizes low-loss IGBTs with a low collector-emitter saturation voltage (VCE(sat)) for high efficiency. Key integrated features include under-voltage lockout (UVLO), short-circuit protection, and an over-temperature sensor, which provide robust system-level protection. This all-in-one solution dramatically reduces component count, PCB size, and development time for low to medium-power applications.

INFORMATION

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
