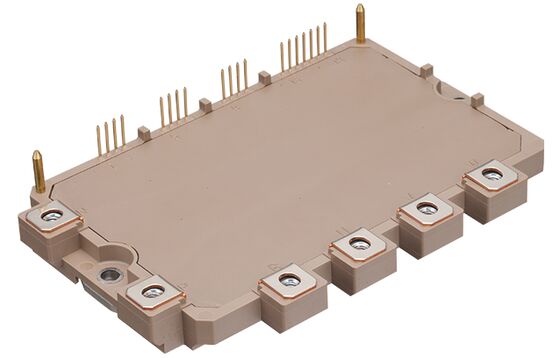

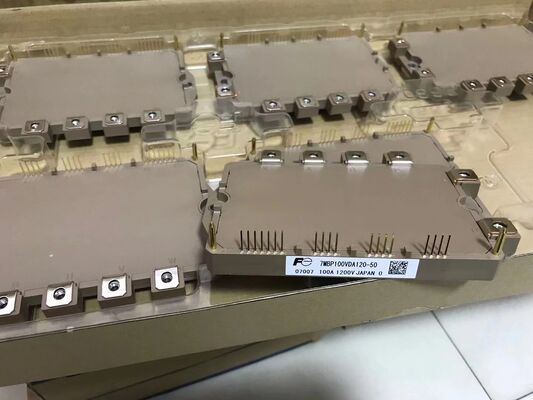

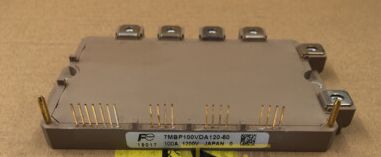

7MP100VDA120-50 1200V 100A IGBT Module Low Vce(sat) 2.5V Low Loss High Short Circuit Ruggedness Integrated NTC Compact Package For Industrial Drives and UPS
Features
-
Temperature protection provided by directly detecting the junction temperature of the lGBTs
-
Low power loss and soft switching
-
High performance and high reliability lGBT with overheating protection
-
Higher reliability because of a big decrease in number of parts in built-in control circuit
Applications
-
Industrial Motor Drives: For pumps, fans, compressors, and conveyor systems.
-
Uninterruptible Power Supplies (UPS): Medium-power three-phase systems.
-
Solar Inverters: String inverters for commercial and small utility-scale photovoltaic systems.
-
Welding Equipment:
-
General-Purpose Industrial Inverters and Frequency Converters.
Description
The 7MP100VDA120-50 is a high-performance IGBT module designed for robust and efficient power conversion in industrial applications. It features a 1200V blocking voltage and a 100A current rating, making it well-suited for medium-power systems. Utilizing advanced IGBT and freewheeling diode technology, it achieves a low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and offers optimized switching characteristics to manage overall power dissipation. The module is engineered for high reliability, incorporating features such as high short-circuit ruggedness and an integrated Negative Temperature Coefficient (NTC) thermistor for precise temperature monitoring and protection. Its compact and robust package design ensures reliable operation in demanding industrial environments.
INFORMATION
| structure |
IPM |
| series |
V series (6th generation) |
| Inverter Section V CES (V) detail |
1200 |
| Inverter Section IC ( A) detail |
100 |
| Inverter section V CE(sat) (V) detail |
1.7 |
| Control unit V CC (V) detail |
15 |
| Control Unit I OC [INV](A) detail |
150 |
| Control Unit V UV (V) detail |
12.5 |
| Control unit T jOH (°C) detail |
150 |
| Alarm signal hold time OC (ms) detail |
2 |
| Alarm signal hold time UV (ms) detail |
4 |
| Alarm signal hold time T jOH (ms) detail |
8 |
| T vj max(℃) detail |
150 |
| Tc(℃) detail |
-20 〜 110 |
| T stg (℃) detail |
-40 〜 125 |
| Packaging |
P630 |
| Width (mm) |
84 |
| Dimensions (length) (mm) |
128.5 |
| Weight (g) |
290 |
Drawing
