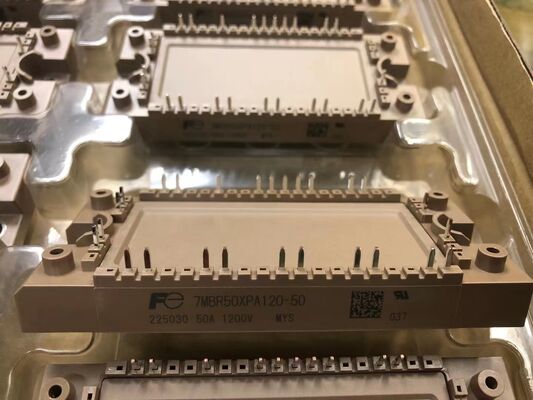

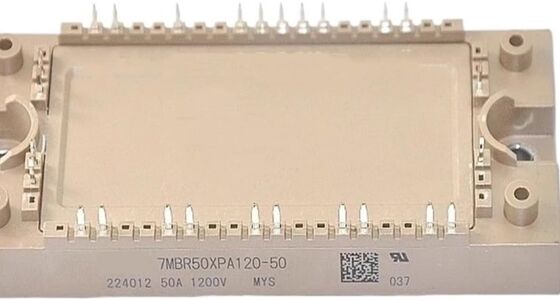

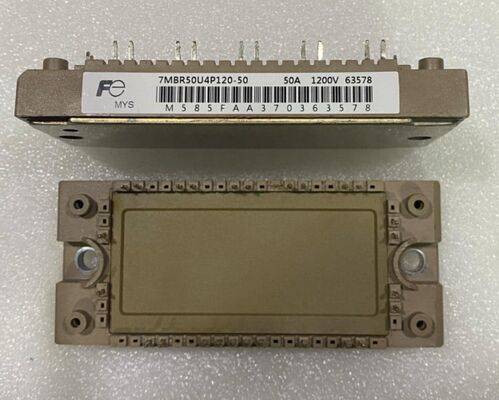

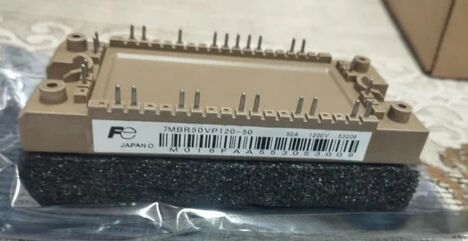

7MBR50XPA120-50 1200V 50A PIM Module Integrated Rectifier Inverter Low Loss High Isolation Built-in NTC Compact Package For Industrial Motor Drives and UPS
Features
-
Power Integrated Module (PIM)
-
1200V / 50A Rating
-
Integrated Functions: 3-Phase Rectifier and 3-Phase Inverter
-
Low Vce(sat) IGBTs and Low Vf Diodes (High Efficiency)
-
High Electrical Isolation
-
Built-in NTC Temperature Sensor
-
Compact, Isolated Package
-
Simplifies System Design and Assembly
-
High Reliability for Industrial Use
Applications
-
Compact Industrial AC Motor Drives / Variable Frequency Drives (VFD): For pumps, fans, and light machinery.
-
General-Purpose Inverters.
-
Uninterruptible Power Supply (UPS) Systems.
-
Servo Drives and Motion Control Systems.
-
Appliance Motor Control in demanding environments.
Description
The 7MBR50XPA120-50 is a highly integrated Power Integrated Module (PIM) designed to provide a compact and efficient all-in-one power stage for industrial motor drives and inverter applications. It integrates a complete three-phase input rectifier and a three-phase IGBT inverter bridge with freewheeling diodes into a single, isolated package. Rated for 1200V and 50A, it enables a significant reduction in system size and design complexity by minimizing external component count. The module utilizes low-saturation voltage IGBTs and low-forward-voltage diodes for high efficiency, offers high electrical isolation for safety, and includes a built-in NTC thermistor for reliable temperature monitoring and protection. This integrated approach enhances overall system reliability and simplifies thermal management.
INFORMATION
| Configuration |
PIM |
| Series |
X Series (7th-Generation) |
| Inverter VCES(V) |
1200 |
| Inverter IC(A) |
50 |
| Inverter,Brake Tvj max(℃) |
175 |
| Inverter,Brake Tvjop max(℃) |
175 |
| Converter Tvj max(℃) |
150 |
| Converter Tvjop max(℃) |
150 |
| Tc(℃) Detail |
125 |
| Tstg(℃) Detail |
-40 to 125 |
| Package |
M719 |
| Terminal type |
Solder pins |
| Size width (mm) |
45 |
| Size length (mm) |
107.5 |
| Net mass (Grams) |
200 |
