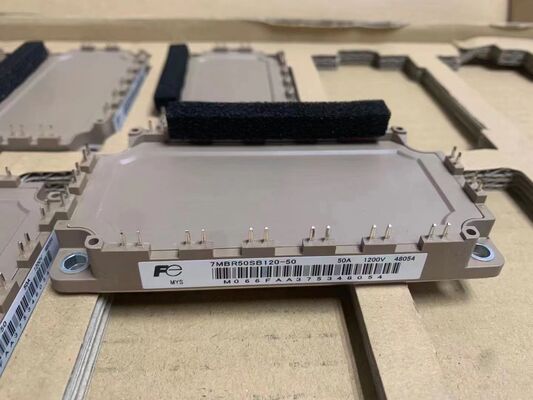

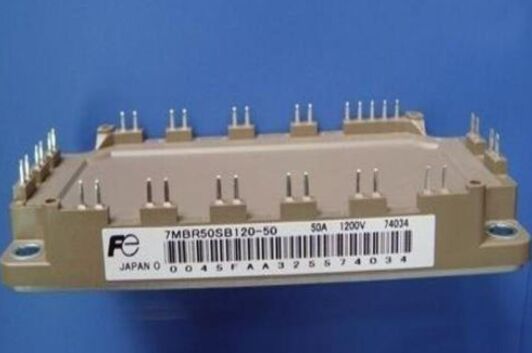

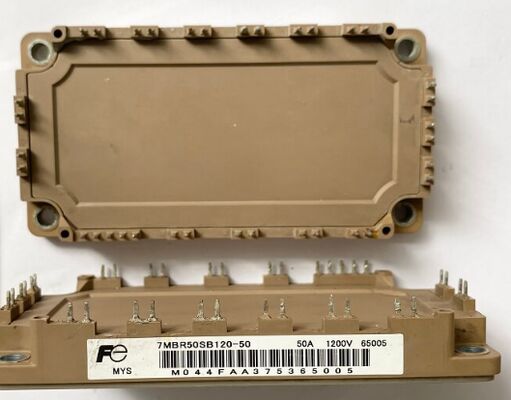

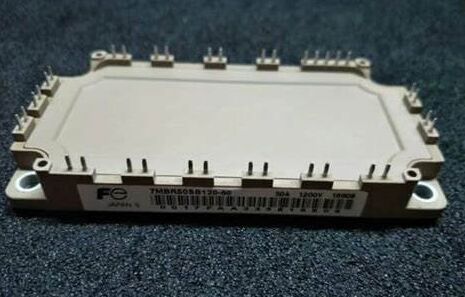

7MBR50SB120-50 1200V 50A PIM Module Integrated Rectifier Brake and Inverter Low Loss High Isolation Built-in NTC Compact Package For Compact Motor Drives

7MBR50SB120-50 1200V 50A PIM Module Integrated Rectifier Brake and Inverter Low Loss High Isolation Built-in NTC Compact Package For Compact Motor Drives

Features

• Power Integrated Module (PIM)

• 1200V / 50A Rating

• Integrated Functions: 3-Phase Rectifier, 3-Phase Inverter, Brake Chopper

• Low Vce(sat) IGBTs and Low Vf Diodes (Low Loss)

• High Electrical Isolation

• Built-in NTC Temperature Sensor

• Compact, Isolated Package

• Simplifies System Design and Thermal Management

• High Reliability

Applications

• Compact AC Motor Drives/Variable Frequency Drives (VFD): For pumps, fans, and light industrial machinery.

• Servo Drives and Motion Control Systems.

• Compact Industrial Inverters.

• Uninterruptible Power Supply (UPS) Inverter Stages.

Description

The 7MBR50SB120-50 is a highly integrated Power Integrated Module (PIM) designed to provide a compact and complete power stage solution for compact motor drives and industrial inverters. It integrates multiple key functions into a single isolated package: a three-phase rectifier bridge, a three-phase IGBT inverter bridge, and a brake chopper (IGBT with freewheeling diode). Rated for 1200V and 50A, it offers a significant reduction in system size and complexity. The module features low-loss IGBTs and diodes for high efficiency, high electrical isolation for safety, and includes a built-in NTC thermistor for temperature monitoring. This all-in-one design simplifies thermal management, reduces component count, and accelerates time-to-market for power-dense applications.
