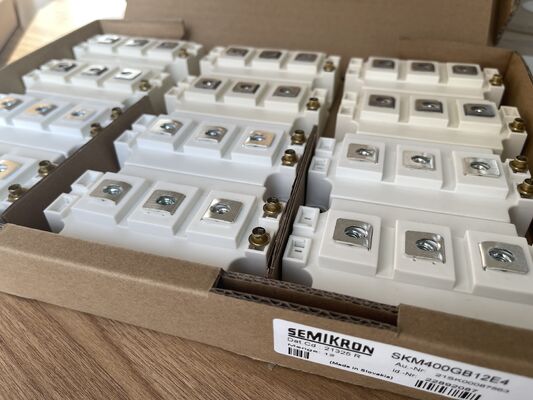

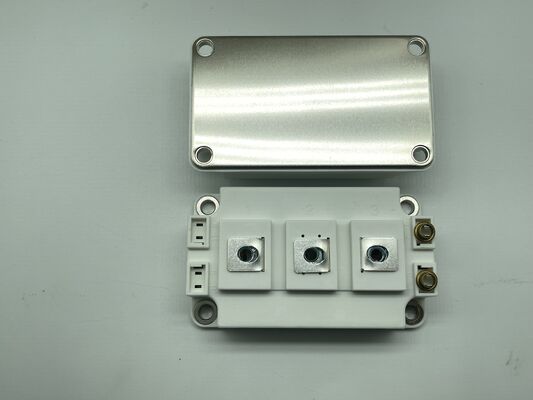

SKM400GB12E4 1200V 400A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation Industrial Grade For Motor Drives and Industrial UPS
Features
-
Power Rating: 1200V / 400A
-
Advanced IGBT and Diode Chips
-
Low Collector-Emitter Saturation Voltage (Vce(sat))
-
Optimized Switching Characteristics
-
High Short-Circuit Withstand Capability
-
High Electrical Isolation
-
Thermally Efficient Package
-
Industrial Grade Construction and Reliability
Applications
-
Industrial Motor Drives: For AC drives controlling pumps, fans, and conveyor systems.
-
Uninterruptible Power Supplies (UPS): Industrial three-phase UPS systems.
-
Power Conversion Units in manufacturing and process control.
-
General-Purpose Inverters and Frequency Converters.
Description
The SKM400GB12E4 is a robust IGBT power module designed for reliable and efficient operation in medium to high-power industrial applications. It features a voltage rating of 1200V and a current rating of 400A. Utilizing advanced IGBT and freewheeling diode chips, this module achieves a favorable balance between low conduction losses (characterized by low Vce(sat)) and manageable switching losses. Its design emphasizes industrial durability, offering high short-circuit withstand capability, strong electrical isolation, and a thermally optimized package to ensure consistent performance and long-term reliability in challenging environments.
INFORMATION
| Chip technology |
IGBT 4 (Trench)
|
| Country of origin |
Slovakia
|
| Current (A) |
400 A
|
| Dimensions (LxWxH) |
106x62x31
|
| Features |
- IGBT4 = 4th generation medium fast trench IGBT (Infineon)
- CAL4 = Soft switching 4th generation CAL-diode
- Insulated copper baseplate using DBC technology (Direct Bonded Copper)
- Increased power cycling capability
- With integrated gate resistor
- For higher switching frequencies up to 12kHz
- UL recognized, file no. E63532
|
| Housing |
SEMITRANS 3
|
| Legacy part number |
22892087
|
| Product line |
SEMITRANS
|
| Product Status |
In Production
|
| Technology |
IGBT
|
| Topology |
Half-Bridge
|
| Type |
SEMITRANS 3
|
| Typical applications |
|
| Voltage (V) |
1200 V
|
Drawing
