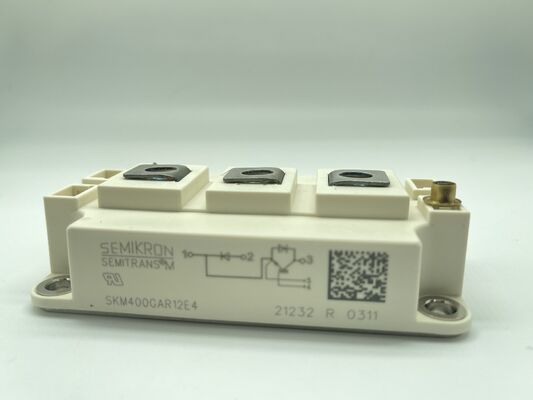

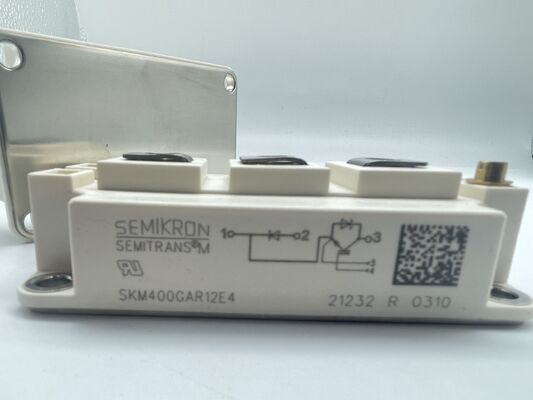

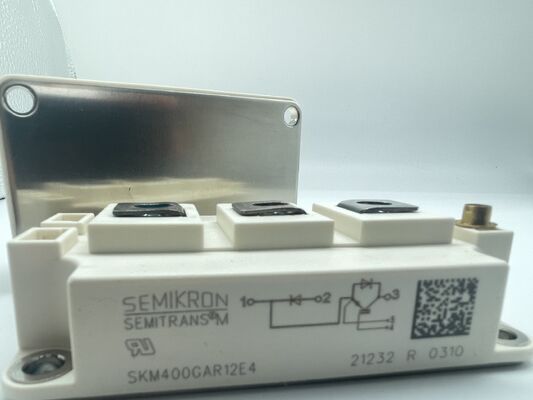

SKM400GAR12E4 1200V 400A IGBT Module Low Vce(sat) High Short Circuit Ruggedness Low Switching Loss High Isolation Industrial Grade For Solar Inverters and High Power UPS
Features
-
High Power Rating: 1200V / 400A
-
Advanced IGBT and Diode Chip Technology
-
Low Vce(sat) (Low Conduction Losses)
-
Low Switching Losses
-
High Short-Circuit Ruggedness
-
High Isolation Voltage
-
Low-Inductance Module Design
-
Industrial Grade Construction
Applications
-
Solar Inverters: Central and string inverters for photovoltaic systems.
-
Uninterruptible Power Supplies (UPS): Medium to high-power three-phase systems.
-
Industrial Motor Drives: For pumps, fans, compressors, and general-purpose drives.
-
Welding Equipment:
-
Power Quality Systems such as active filters.
Description
The SKM400GAR12E4 is a high-power IGBT module designed for robust and efficient industrial power conversion. It delivers a high voltage rating of 1200V and a substantial current capability of 400A, making it suitable for medium to high-power systems. The module incorporates advanced IGBT and diode chips that provide an optimal balance between low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and controlled switching characteristics for manageable switching losses. It is built for industrial reliability, featuring high short-circuit ruggedness, excellent electrical isolation, and a low-inductance design to ensure stable and durable performance in demanding applications.
INFORMATION
| Chip technology |
IGBT 4 (Trench)
|
| Country of origin |
Slovakia
|
| Current (A) |
400 A
|
| Dimensions (LxWxH) |
106x62x31
|
| Features |
- IGBT4 = 4th generation medium fast trench IGBT (Infineon)
- CAL4 = Soft switching 4th generation CAL-diode
- Insulated copper baseplate using DBC technology (Direct Bonded Copper)
- Increased power cycling capability
- With integrated gate resistor
- For higher switching frequencies up to 12kHz
- UL recognized, file no. E63532
|
| Housing |
SEMITRANS 3
|
| Legacy part number |
22892414
|
| Product line |
SEMITRANS
|
| Product Status |
In Production
|
| Technology |
IGBT
|
| Topology |
Chopper/Booster
|
| Type |
SEMITRANS 3
|
| Typical applications |
- DC/DC – converter
- Brake chopper
- Switched reluctance motor
|
| Voltage (V) |
1200 V
|
