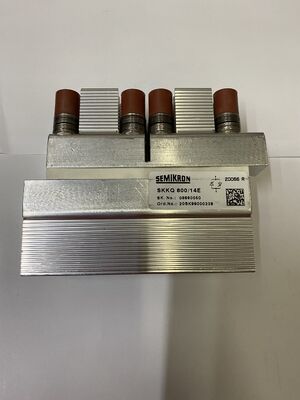

SKKQ800/14E 1400V 800A IGBT Module Low Vce(sat) Low Loss High Ruggedness Low Inductance NTC Sensor Industrial Grade For Megawatt Drives and Heavy UPS

SKKQ800/14E 1400V 800A IGBT Module Low Vce(sat) Low Loss High Ruggedness Low Inductance NTC Sensor Industrial Grade For Megawatt Drives and Heavy UPS

Features

• Ultra-High Power Rating: 1400V / 800A

• Half-Bridge IGBT Topology

• Low Vce(sat) IGBTs (Low Conduction Losses)

• Optimized Low Switching Losses

• High Short-Circuit Ruggedness (SCWT)

• Low-Inductance Module Design

• Advanced NTC Temperature Sensor

• High Isolation Voltage

• Industrial Grade Robustness & Reliability

Applications

• Heavy Industrial Motor Drives: For large compressors, extruders, rolling mills, and mining equipment.

• High-Power Uninterruptible Power Supplies (UPS): For large data centers and industrial facilities.

• Power Conversion Systems (PCS) for large-scale energy storage.

• Renewable Energy Inverters: For high-power wind and solar applications.

• Traction Converters for locomotives and large electric vehicles.

Description

The SKKQ800 14E is a robust, high-power half-bridge IGBT module engineered for the most demanding megawatt-level power conversion applications. It combines a very high voltage rating of 1400V with an ultra-high current capability of 800A, making it a cornerstone for heavy-duty systems. The module utilizes advanced IGBT and diode chip technology to achieve an optimal balance between low collector-emitter saturation voltage (Vce(sat)) for reduced conduction losses and low switching losses for high efficiency. It is designed for industrial ruggedness, featuring high short-circuit withstand capability, a low-inductance package for clean switching, and excellent thermal performance to ensure maximum reliability and uptime in critical operations.

INFORMATION

Drawing
