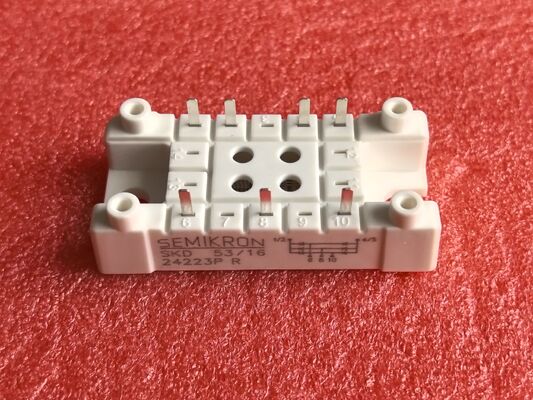

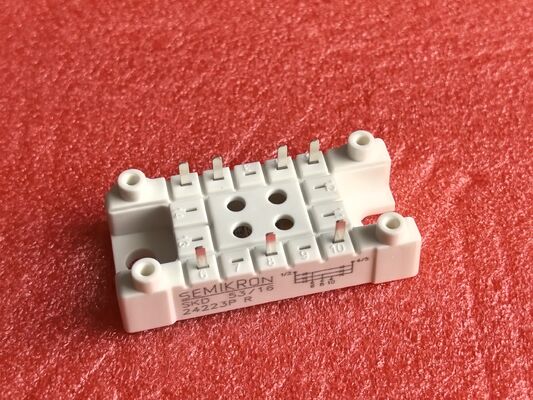

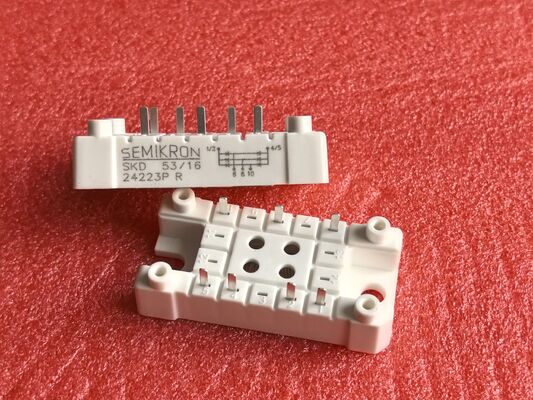

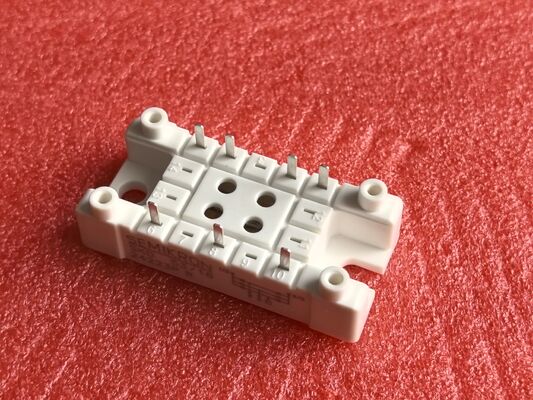

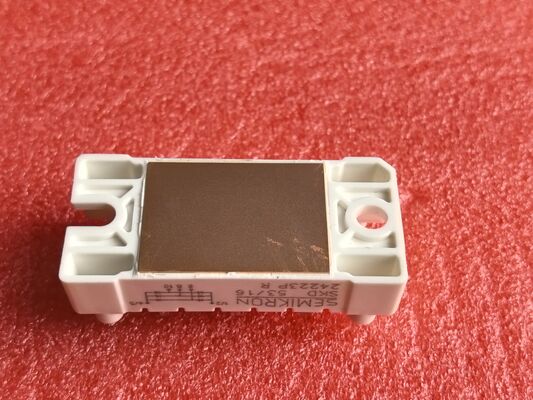

SKD53 16 1600V 53A Dual Diode Module Soft Recovery Low Forward Voltage High Surge Current High Isolation Compact EconoDUAL Package For Industrial Rectifiers and Welding
Features
-
Dual Diode Configuration
-
High Voltage Rating: 1600V (VRRM)
-
High Current Rating: 53A (IAV)
-
Low Forward Voltage Drop (VF)
-
Soft Recovery Characteristics
-
High Surge Current Capability (IFSM)
-
High Isolation Voltage
-
Compact, Isolated EconoDUAL-Type Package
-
Industrial Grade Robustness
Applications
-
Industrial Rectifiers: Three-phase bridge rectifiers in high-power motor drives, UPS systems, and switch-mode power supplies (SMPS).
-
Welding Equipment Power Supplies:
-
High-Power Battery Chargers:
-
Uninterruptible Power Supply (UPS) Systems:
-
AC/DC Front-Ends for Industrial Inverters and Converters.
Description
The SKD53 16 is a high-power, high-voltage dual diode module engineered for demanding industrial rectification and power conversion applications. It houses two independent diodes within a robust and industry-standard isolated package. Each diode is rated for a repetitive peak reverse voltage of 1600V and a high average forward current of 53A. The diodes feature optimized low forward voltage drop to ensure high efficiency and are designed with soft recovery characteristics to minimize switching losses and electromagnetic interference (EMI). With its excellent surge current handling capability and high electrical isolation, all within a compact EconoDUAL-style package, it delivers a reliable and efficient solution for high-current power stages.
INFORMATION
| Current (A) |
53 A
|
| Dimensions (LxWxH) |
63.5x29.5x17
|
| Features |
- Glass passivated silicon chips
- Low thermal impedance through use of direct copper bonded aluminum substrate (DCB) base plate
- Blocking voltage up to 1800 V
- Suitable for PCB mounting and wave soldering
- For applications with high vibrations we recommend to fasten the bridge to the pcb with 4 selftapping screw
- UL recognition applied for
|
| Housing |
G55
|
| Legacy part number |
07232850
|
| Product line |
Power Bridge
|
| Product Status |
In Production
|
| Surge current (A) |
270 A
|
| Technology |
Bridge
|
| Topology |
Rectifier
|
| Type |
G55
|
| Typical applications |
- Three phase rectifiers for power supplies
- Input rectifiers for variable frequency drives
- Rectifiers for DC motor field supplies
- Battery charger rectifiers
|
| Voltage (V) |
1600 V
|
Drawing
