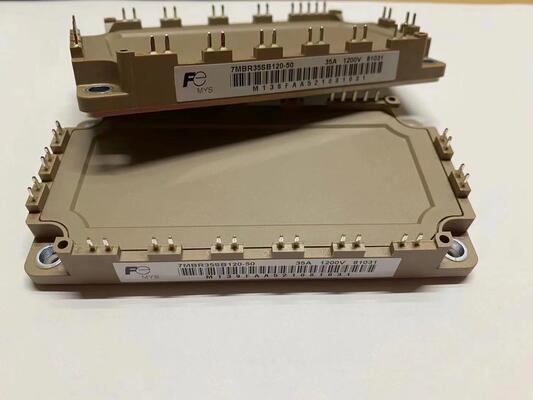

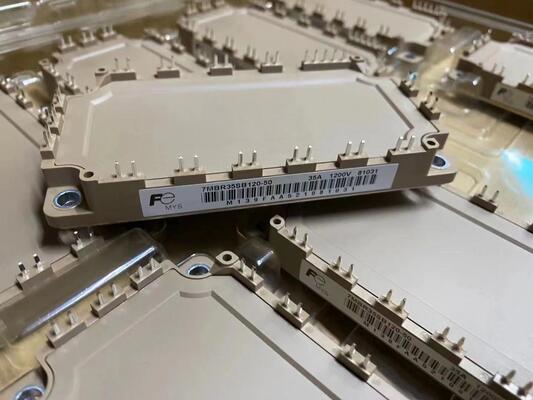

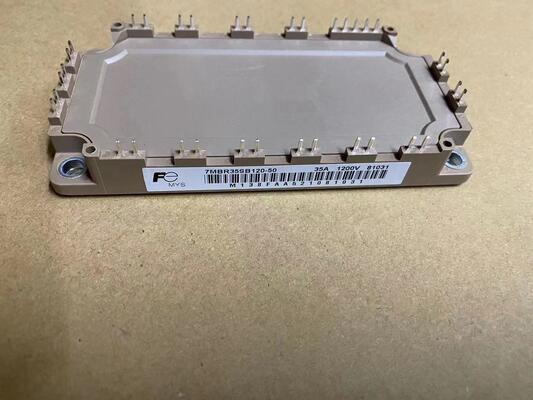

7MBR35SB120-50 1200V/35A Seven-In-One IGBT Module Integrated Braking Circuit Built-in NTC Low VCE(sat) High Speed Switching Compact Structure Industrial Grade for AC Drives & UPS Systems
Features
Low VcE(sat)
Compact package
P.C. board mount
Converter diode bridge, Dynamic brake circuit
Applications
Inverter for motor drive
AC and DC servo drive amplifier
Uninterruptible power supply
Description
The 7MBR35SB120-50 is a highly integrated intelligent power module (IPM) that incorporates a complete three-phase inverter bridge, a braking chopper circuit, and associated drive protection circuits in a single compact package. It is rated for 1200V and 35A, making it a robust and space-efficient solution for motor control and power conversion.
This module is engineered for reliability and ease of use, featuring low VCE(sat) for high efficiency, high-speed switching performance, and a built-in NTC thermistor for temperature monitoring. Its all-in-one design simplifies PCB layout, reduces external component count, and enhances system reliability, making it an ideal choice for compact and high-performance drive systems.
