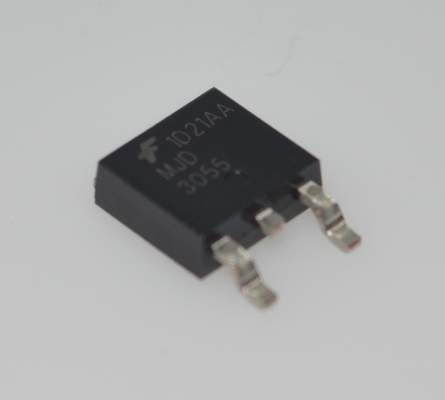

MJD3055T4G 60V 15A NPN Power Darlingtons Low VCE(sat) for high efficiency integrated damper & diode for rugged performance TO-220 package Ideal for inductive loads motors and solenoids

MJD3055T4G 60V 15A NPN Power Darlingtons Low VCE(sat) for high efficiency integrated damper & diode for rugged performance TO-220 package Ideal for inductive loads motors and solenoids

Features

•Lead Formed for Surface Mount Applications in Plastic Sleeves (No Suffix)

•Straight Lead Version in Plastic Sleeves (“−1” Suffix)

•Electrically Similar to MJE2955 and MJE3055

•High Current Gain−Bandwidth Product

•Epoxy Meets UL 94 V−0 @ 0.125 in

•NJV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable

•These Devices are Pb−Free and are RoHS Compliant

Description

1:Motor Control: This is its most classic application scenario. For example:

DC motor forward/reverse control (H-bridge circuits) and speed regulation.

Driving small fans and pumps.

2:Inductive Load Switching:

Controlling solenoids and electromagnetic valves, commonly found in automation equipment, inkjet printers, industrial control systems, etc.

Relay drive circuits.

3:Linear Regulated Power Supplies: Used as the pass element in series voltage regulators to provide a stable output voltage.

4:Low-Frequency Power Amplification: In audio amplifiers, it can be used in the output stage to drive speakers (though in modern times it has

been largely supplanted by MOSFETs and integrated circuits for this purpose).

INFORMATION

Drawing
