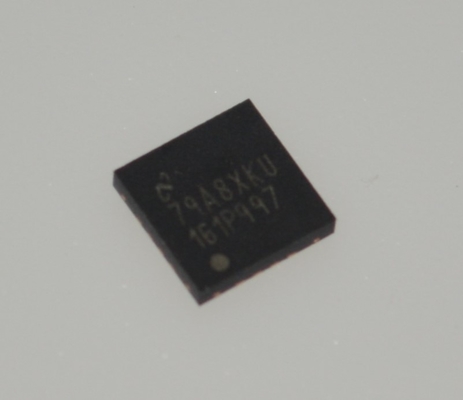

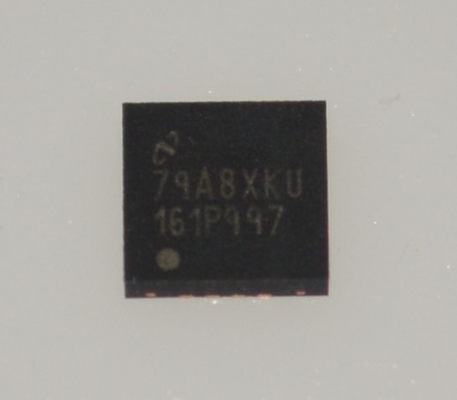

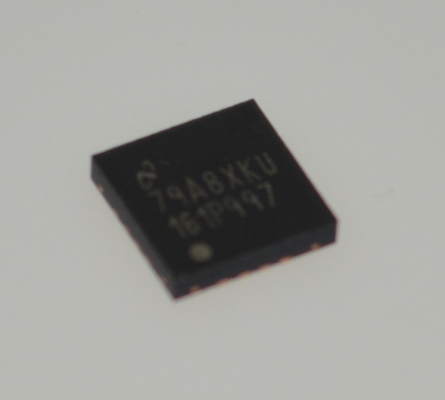

DAC161P997CISQ/NOPB 16-Bit Programmable Loop-Powered 4-20mA DAC High-Accuracy Low-Power Digital Calibration HART Compatible Robust ±40V Fault Protection Industrial Automation Solution

DAC161P997CISQ/NOPB 16-Bit Programmable Loop-Powered 4-20mA DAC High-Accuracy Low-Power Digital Calibration HART Compatible Robust andplusmn;40V Fault Protection Industrial Automation Solution

andnbsp;

Features

16-Bit Linearity

Single-Wire Interface (SWlF), with Handshake

Digital Data Transmission (No Loss of Fidelity)

Pin Programmable Power-Up Condition

Self Adjusting to Input Data Rate

Loop Error Detection and Rreporting

Programmable Output Current Error Level

No External Precision Components

Simple Interface to HART Modulator

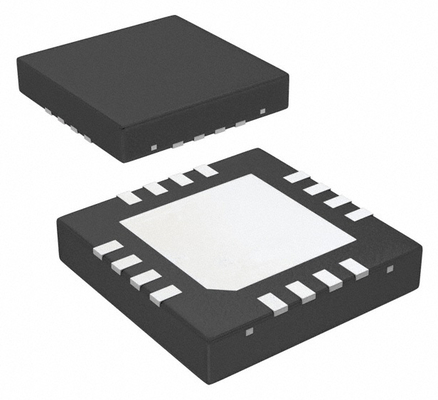

Small Package: WQFN-16 (4 x 4 mm, 0.5 mmPitch)

Key Specifications

andnbsp;andnbsp;-Output Current TempCo: 29 ppmFS/anddeg;C (Max)

andnbsp;andnbsp;-Long-Term Output Current Drift: 90 ppmFS(TyP)

andnbsp; -INL: 3.3/-2.1 andmu;A(Max)

andnbsp; -Total Supply Current: 190 andmu;A (Max)

andnbsp;

Application

Two-Wire,4-20 mA Current Loop Transmitter

Industrial Process Control

Actuator Control

Factory Automation

Building Automation
Precision instruments

Data Acquisition Systems
Test Systems

andnbsp;

Description

The DAC161P997 is a 16-bit andDelta; digital-to-analogandnbsp;converter(DAC)for transmitting an analog outputandnbsp;current over an industry standard 4-20 mA currentandnbsp;loop.lt offers 16-bit accuracy with a low outputandnbsp;current temperature coefficient(29ppm/C)andandnbsp;excellent long-term output current drift (90 ppmFS)andnbsp;while consuming less than 190 andmu;A.

The data link to the DAC161P997 is a Single Wireandnbsp;Interface(SWF)which allows sensor data to beandnbsp;transferred in digital format over an isolationandnbsp;boundary usingja single isolation component. Theandnbsp;DAC161P997and#39;S;digital input is compatible withandnbsp;standard isolation transformers and opto-couplers.andnbsp;Error detection and handshaking features within theandnbsp;SWF protocolensure error free communicationandnbsp;across the isolation boundary. For applications whereandnbsp;isolation is not required, the DAC161P997 interfacesandnbsp;directly to a microcontroller.

The loop drive of the DAC161P997 interfaces to aandnbsp;HART(Highway Addressable Remote Transducer)andnbsp;modulator, allowing injection of FSK modulated digitalandnbsp;data into the 4-20 mA current loop. This combinationandnbsp;of specifications andfeatures makes theandnbsp;DAC161P997idealfor2-and4-wire industrialandnbsp;transmitters.

The DAC161P997 is available in a 16-lead WQFNandnbsp;package and is specified over the extended industrialandnbsp;temperature range of -40and#39;C to 105anddeg;C.

andnbsp;

INFORMATION

andnbsp;

Drawing

Our advantage :phones, PDAand#39;s, notebook comput.ers

• High quality products --- our offers are 100% new and original, ROHS
• Competitive price --- good Purchase channels with good price.
• Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
• Adequate inventory --- With the support of our strong Purchasing team,
• Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

andnbsp;

be sure to meet your need for all kinds of components. ^_^
