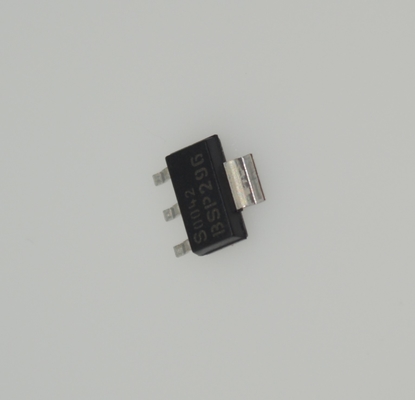

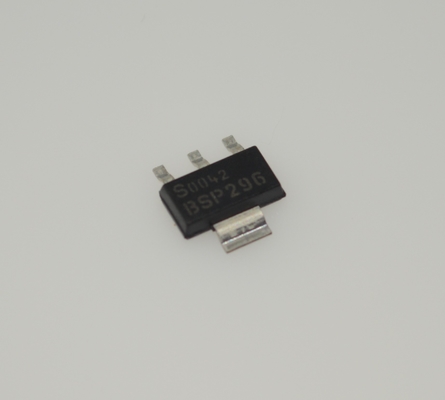

BSP296NH6327XTSA1 N-Channel Logic Level MOSFET 60V 2.5A SOT-23 Package Ultra-Low 85mΩ Rds(on) 4V Vgs(th) Fast Switching 100% Rg Tested RoHS Compliant AEC-Q101 Qualified

BSP296NH6327XTSA1 N-Channel Logic Level MOSFET 60V 2.5A SOT-23 Package Ultra-Low 85mΩ Rds(on) 4V Vgs(th) Fast Switching 100% Rg Tested RoHS Compliant AEC-Q101 Qualified

Features

• N-channel

• Enhancement mode

• Logic level (4.5V rated)

• Avalanche rated

• Qualified according to AEC Q101

• 100% lead-free; RoHS compliant

• Halogen-free according to IEC61249-2-21

Applications

1:Automotive Electronics

Motor drives (window lifters, wipers, fan control)

Power management modules (load switches, DC-DC converters)

2:Industrial Control

PLC output modules, relay drives

Portable device power switching

3:Consumer Electronics

Battery management systems (charge/discharge control)

LED drive circuits

4:Communication Equipment

Power distribution switches, interface protection circuits

Description

1:Electrical Parameters

Drain-Source Voltage (VDS): 60V

Continuous Drain Current (ID): 2.5A

On-Resistance (Rds(on)): Ultra-low 85mΩ (@Vgs=10V)

Gate Threshold Voltage (Vgs(th)): 2-4V (logic-level compatible)

Switching Speed: Fast switching capability, reducing switching losses

2:Packaging & Certifications

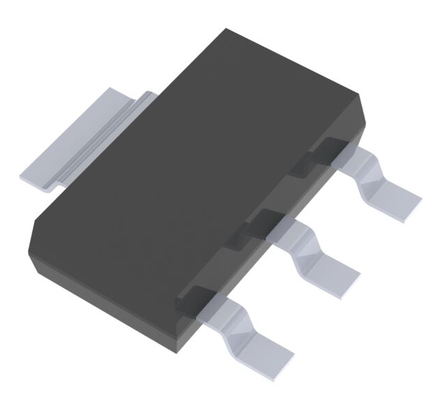

Package: SOT-23 (3-pin), saves PCB space

Quality Certification: AEC-Q101 automotive-grade reliability certified

Testing Standard: 100% gate resistance (Rg) tested for consistency

Environmental Compliance: RoHS compliant, lead-free design

3:Performance Advantages

Logic-Level Drive: Can be directly driven by MCUs (3.3V/5V) without level shifting

Low Conduction Loss: 85mΩ Rds(on) significantly reduces power loss

Temperature Stability: Operating temperature range from -55°C to +150°C, suitable for harsh environments
