| Product Name: | GSM GPRS Module | Weight: | 1.5 G |
|---|---|---|---|
| Size: | 17.6x15.7x2.3 Mm | Temperature Range: | -40℃ To 85℃ |
| Supply Voltage Range: | 3.4~4.4V | Interfaces: | 42 SMT Pins Including |
| High Light: | miniature gsm module,wireless gsm module |
||
Introduction :

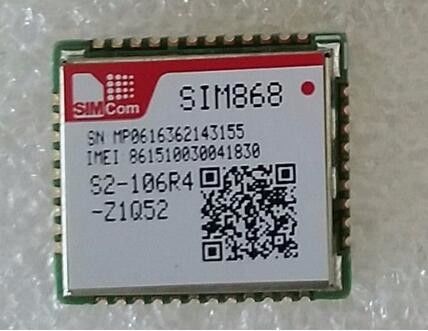

SIM868 module is a complete Quad-Band GSM/GPRS module which combines GNSS technology for satellite navigation. The compact design with LCC and LGA pads will significantly save both time and costs for customers to develop GNSS enabled applications. Featuring an industry-standard interface and GNSS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
General features:
| General features | |
| • Dimensions: | 17.6*15.7*2.3mm |
| • Weight: | 1.5g |
| • Quad-band | 850/900/1800/1900MHz |
| • GPRS multi-slot | class 12/10 |
| • GPRS mobile station | class B |
| • Compliant to GSM | phase 2/2+ |
| –Class 4 | (2 W @ 850/900MHz) |
| –Class 1 | (1 W @ 1800/1900MHz) |
| • Control via AT commands | (3GPP TS 27.007, 27.005 and SIMCom enhanced AT Commands) |
| • Supply voltage range | 3.4 ~ 4.4V |
| • Low power consumption | |
| • Operation temperature: | -40℃ ~85℃ |
Specification for GPS
• Receiver type
-22 tracking /66 acquisition -channel
-GPS L1 C/A code
• Sensitivity
-Tracking: -166 dBm
-Cold starts : -148 dBm
• Time-To-First-Fix
-Cold starts: 29s (typ.)
-Hot starts: <1s
-Warm starts: 22s
• Accuracy
-Horizontal position : <2.5m CEP
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
• 77 SMT pins including
• SIM Card Interfaces ---SIM card: 3V/ 1.8V
• Analog audio interface
• RTC GNSS backup
• I2C interface
• USB interface
• Serial interface
• SD
• GPIO
• ADC
• GSM Antenna pad/GNSS Antenna pad/Bluetooth Antenna pad
