Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting

China Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting supplier
Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting supplier Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting supplier

Large Image :  Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting

Product Details:

Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS09

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 5.3$~5.8$/pcs
Packaging Details: 1pcs/box (1pcs/PE bag), 100pcs/carton
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: L/C, T/T,Paypal
Supply Ability: 20k pcs/ month
Contact Now
Detailed Product Description

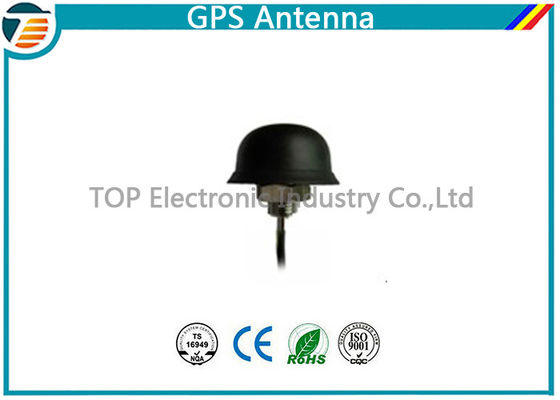

Product Name: GPS Active Antenna Size: 68*54mm
Gain: 28 Dbi Mounting Method: Screw
Operating Temperature: -40℃~+85℃ Output Impedance: 50 Ohm

Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting





Description:

GPS Active Antenna for your customization: Input voltages 2.2 ~ 5.0V, Max current 15mA, Max Cable length 5m, Different connector types are available.





Features

  • Compatible with all GPS devices/systems

  • Built-in GPS signal amplifier to enhance and improve GPS signal reception

  • Mount options: screw mount

  • Connector type options: straight or right angle BNC, MCX,MMCX,SMA,SMB-F,SMB-M,SMC,FAKRA,HRS GT5 etc. (Default: straight SMA type)

  • Cable length options: 1m,3m,5m etc.



Specification:

Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174 or others

Connector

SMA/MCX/FAKRA or others

Radome Material

ABS

Mounting Method

Screw

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP67 (exclude cable outlet)

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant





Application:

AVL , Car Navigation , Vehicle Tracking , Weather Balloon , Security Surveillance ,  Antenna for Handheld GPS ,PDA , PC etc







Advantage:

·         Diminutive & rugged construction allows for military and other applications demanding high degree of confidentiality.

·         Ultra-high sensitivity.

·         Module board available for embedded applications.

·         Various colors upon request.





Drawing:



Optimum Connectivity High Gain 50 Ohm Antenna With Screw Mounting









Click here to find the data sheet



TOP-GPS09.pdf











--------------------------------------------------------------------------------------------------------------------------
