High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08

China High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08 supplier
High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08 supplier High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08 supplier High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08 supplier High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08 supplier

Large Image :  High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08

Product Details:

Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS-AI08

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 2.5$/PCS~$3/PCS
Packaging Details: 1pcs/box (1pcs/PE bag), 100pcs/carton
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 20k pcs/ month
Contact Now
Detailed Product Description
Product Name: GPS Internal Antenna Size: 27*27*9mm
Ceramics Size: 25*25*4mm Cable: 1.13,1.37,rg174 Or Others
Operating Temperature: -40℃~+85℃ Connector: IPEX, U.FL, GSC,SMA,SMB Etc

High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08



The size for internal patch active GPS antenna:

13x13 ,15x15, 18x18, 20x20, 25x25, 27x27, 37x37,



Introduction:

TOP-GPS-AI08 is a most compact/thin high gain GPS 3V and 5V antenna module. With comprehensive coverage almost all way to the horizon,

it performs excellent in foliage or urban canyon environment. Also, It is compatible with most GPS receives available on the market and provides a perfect alternative for the application of the GPS in different fields.



Electrical Characteristics

The antennas contains a high performance GPS patch antenna and a high-tech low noise amplifier

l  Provides excellent signal amplification and out-band-rejection for the receiver

l  Mounting: Magnetic base/Adhesive

l  Water resistant



Specification:

Item

Specifications

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RF1.13 or others

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant







Ordering information:

Part# Size(mm)
TOP-GPS-AI01 13*13*6.2MM
TOP-GPS-AI02 15*15*7MM
TOP-GPS-AI03 18*18*7.8MM
TOP-GPS-AI04 20*20*8MM
TOP-GPS-AI05 25.3*25.3*9MM
TOP-GPS-AI06 37*29*6MM /37*29*8MM
TOP-GPS-AI07 37*37*5.5MM /37*37*7.5MM
TOP-GPS-AI08 27*27*9MM
TOP-GPS-AI09 D45*7.8MM
TOP-GPS-AI10 30*25*4MM





Advantage:



The internal active GPS antenna module with small size and with high sensitivity, high temperature stability and low current consumption.



Application:

It's ideal for embedded applications like PDA, PND, laptops and for the application of the GPS in different fields.





Drawing:

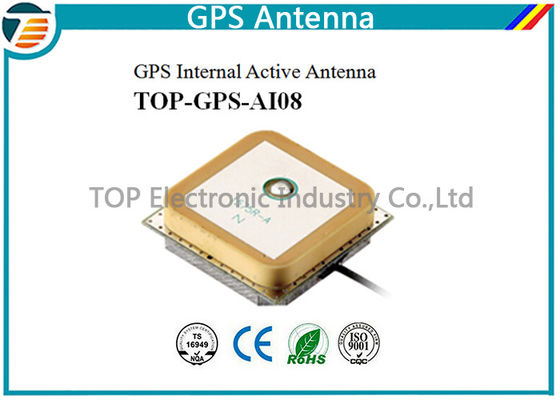

High Performance High Gain GPS Antenna For Cell Phone TOP-GPS-AI08



Click here to find the data sheet



TOP-GPS-AI08.pdf
