Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900

China Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900 supplier
Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900 supplier Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900 supplier Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900 supplier Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900 supplier

Large Image :  Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900

Product Details:

Place of Origin: China
Brand Name: SIMCOM
Certification: CE, ROHS,REACH
Model Number: SIM800

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 5~7usd
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 2-3 working days after received the payment
Payment Terms: T/T, paypal or western Union
Supply Ability: 5,000pcs per month
Contact Now
Detailed Product Description
Product Name: GSM GPRS Module Weight: 3.14 G
Size: 24x24x3 Mm Temperature Range: -40℃ To 85℃
Supply Voltage Range: 3.4~4.4V Replace: Pin To Pin SIM900

Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900



Specifications



SIM800 is a complete Quad- band GSM/GPRS solution in a SMT type which can be embedded in the customer applications. SIM800 support Quad - band 850/900/1800/1900MHz, it can transmit Voice, SMS and data information with low power consumption. With tiny size of  24*24*3 mm, it can fit into slim and compact demands of customer design. Featuring Bluetooth and Embedded AT, it allows total cost savings and fast time- to - market for customer applications.



 General features

• Quad-band

850/900/1800/1900MHz

• GPRS

multi-slot class 12/10

• GPRS

 mobile station class B

• Compliant to GSM phase 2/2+

– Class 4 (2 W @ 850/900MHz)

– Class 1 (1 W @ 1800/1900MHz)

• Bluetooth:

compliant with 3.0+EDR

• Dimensions:

24*24*3mm

• Weight:

3.14g

• Control via AT commands

(3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands)

• Supply voltage range

3.4 ~ 4.4V

• Low power consumption



• Operation temperature:

-40℃ ~85℃




Specification  for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• CSD up to 14.4 kbps
• USSD
• Non transparent mode

Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode

Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• E-MAIL
• DTMF
• Jamming Detection
• Audio Record
• TTS (optional)
• Embedded AT (optional)



Specifications for voice
• Tricodec
– Half rate (HR)
– Full rate (FR)
– Enhanced Full rate (EFR)
• AMR
– Half rate (HR)
– Full rate (FR)
• Hands-free operation
(Echo suppression)

Interfaces
• 68 SMT pads including
• Analog audio interface
• PCM interface(optional)
• SPI interface (optional)
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• Bluetooth Antenna pad

Compatibility
• AT cellular command interface

Certifications
• CE
• GCF
• FCC
• TA
• CTA
• CCC
• ROHS
• REACH
• ANATEL
• A-TICK

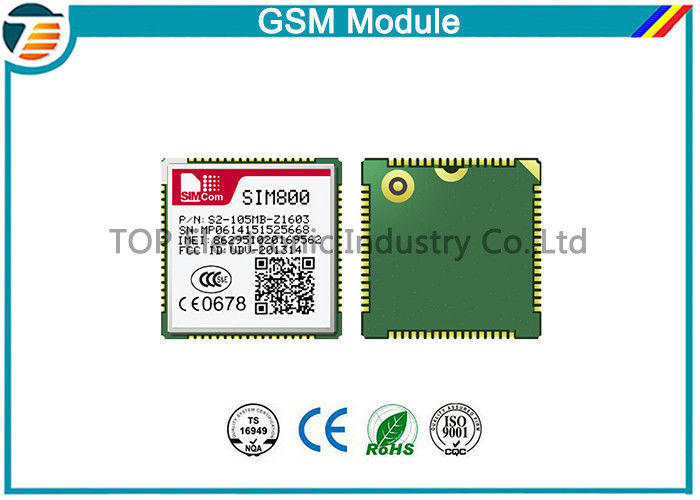

Pictures Display:



Quad Band Micro GSM GPRS Modem Module SIM800 Pin To Pin SIM900





OUR Offer:



communication antennas & modules with wonderful solution, Perfect after-sales service, strict quality testing and competitive price.module brands includes Sierra Wiressless, Simcom, Cinterion, U-blox, Hua wei , ZTE, Holux, Globalsat, GlobaTop, Skylab, Telit, etc.
