Product Details:
Payment & Shipping Terms:
|
| Product Name: | GSM GPRS Module | Weight: | 3.3 G |
|---|---|---|---|
| Size: | 24x24x2.6 Mm | Temperature Range: | -40℃ To 85℃ |
| Supply Voltage Range: | 3.4~4.4V | Support GPS: | YES |
| High Light: | miniature gsm module,wireless gsm module |
||

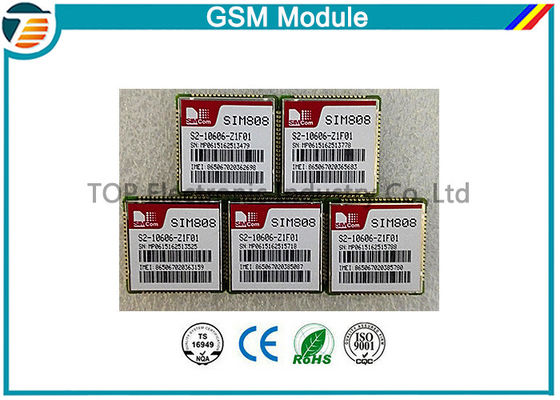

Embedded TCP / UDP GSM GPRS Module SIM808 Support GPS 3.4V - 4.4V
Introduction:
SIM808 module is a complete Quad-Band GSM/GPRS module which combines GPS technology for satellite navigation. The compact design which integrated GPRS and GPS in a SMT package will significantly save both time and costs for customers to develop GPS enabled applications. Featuring an industry-standard interface and GPS function, it allows variable assets to be tracked seamlessly at any location and anytime with signal coverage.
Specifications for GPRS Data
• GPRS class 12: max. 85.6 kbps (downlink/uplink)
• PBCCH support
• Coding schemes CS 1, 2, 3, 4
• PPP-stack
• USSD
Specifications for SMS via GSM/GPRS
• Point to point MO and MT
• SMS cell broadcast
• Text and PDU mode
Software features
• 0710 MUX protocol
• Embedded TCP/UDP protocol
• FTP/HTTP
• MMS
• POP3/SMTP
• DTMF
• Jamming Detection
• Audio Record
• SSL
• Bluetooth 3.0 (optional)
• TTS CN(optional)
• Embedded AT (optional)
Compatibility
• AT cellular command interface
Specification for GPS
• Receiver type
- 22 tracking /66 acquisition
- channel-GPS L1 C/A code
• Sensitivity
- Tracking: -165 dBm
- Cold starts : -148 dBm
• Time-To-First-Fix
- Cold starts: 32s (typ.)
- Hot starts: <1s
- Warm starts: 3s
• Accuracy-Horizontal position : <2.5m CEP
Interfaces
• 68 SMT pads including
• Analog audio interface
• PCM interface(optional)
• SPI interface (optional)
• RTC backup
• Serial interface
• USB interface
• Interface to external SIM 3V/1.8V
• Keypad interface
• GPIO
• ADC
• GSM Antenna pad
• Bluetooth Antenna pad
• GPS Antenna pad
General features
|
• Quad-band |
850/900/1800/1900MHz |
|
• GPRS |
multi-slot class 12/10 |
|
• GPRS |
mobile station class B |
|
• Compliant to GSM phase 2/2+ |
– Class 4 (2 W @ 850/900MHz) |
|
– Class 1 (1 W @ 1800/1900MHz) |
|
|
• Dimensions: |
24*24*2.6mm |
|
• Weight: |
3.3g |
|
• Control via AT commands |
(3GPP TS 27.007,27.005 and SIMCOM enhanced AT Commands) |
|
• Supply voltage range |
3.4 ~ 4.4V |
|
• Low power consumption |
|
|
• Operation temperature: |
-40℃ ~85℃ |
Certifications
• CE
• A-TICK
• TA
• CCC
