Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver

China Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver supplier
Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver supplier Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver supplier Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver supplier

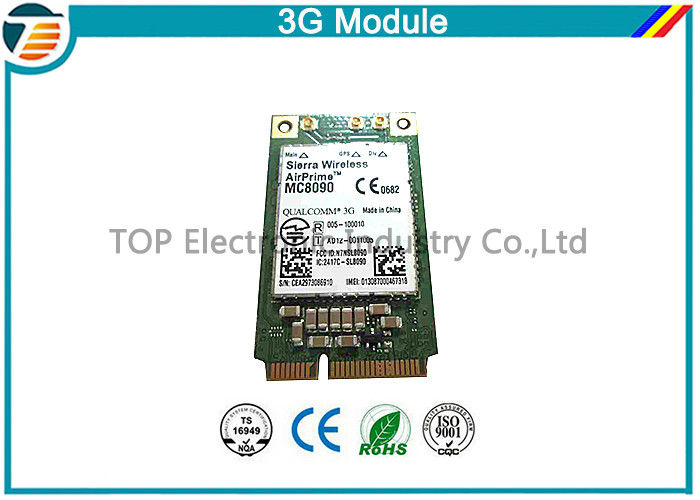

Large Image :  Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver

Product Details:

Place of Origin: China
Brand Name: SIERRA Wireless
Certification: FCC, IC, PTCRB
Model Number: MC8090

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 55~60usd
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 2-3 working days after received the payment
Payment Terms: T/T, paypal or western Union
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G Module Weight: <15g
Size: 51x30x4.5 Mm Temperature Range: -40℃ To 85℃
Dirvers: Android, Linux Carrier: AT&T, NTT DoCoMo

Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver





Description :

MC8090 is a 3G HSPA+ Quad band module with an integrated GPS receiver primarily for Americas, APAC and Japan. Fall back to 2G-GSM/GPRS/EDGE Quad band. Supported frequency bands: 3G 900/2100 and 2G 850/900/1800/1900. Form factor: PCIe Mini Card F1, 51x30 mm.



The AirPrime MC809x offers tri-band (850/1900/2100 MHz) or dual-band (900/2100 MHz) HSPA+ connectivity for roaming on high-speed networks at speeds up to 14.4 Mbps downlink and up to 5.76 Mbps uplink, as well as quad band GSM/GPRS/EDGE.

The MC8090 offers tri-band UMTS/HSPA+ connectivity (850/1900/2100 MHz) and dual-band diversity (850/1900 MHz).

The MC8092 offers dual-band UMTS/HSPA+ connectivity and dual-band diversity (900/2100 MHz)





Features :

  Air interface: 3G-HSPA+ with Rx Diversity, 2G-GSM/GPRS/EDGE, GPS

  3G bands: 800/850/1900/2100 MHz

  2G bands: 850/900/1800/1900 MHz

  Peak data rate: DL 14.4 Mbps, UL 5.76 Mbps

  GPS: Qualcomm

  Form factor: PCIe Mini Card F1, 51x30x4.5mm

  Supply Voltage: 3.3 V nominal

  Operating Temperature: -25°C to +85°C


Control, software and features

  Control options: AT Commands, CnS

  Drivers: Android, Linux, Windows


Connectors

  System connector: 52 position Mini PCIe

  Antenna RF connector: 2x U.FL (Main RF, Aux RF/GPS)


Interfaces

  USB 2.0 High Speed

  Main radio disable

  GPIO: 6

  Flash LED output

  SIM interface: 1.8/3V


Audio

  Digital audio: I2S

  Codec: FR, EFR, HR, AMR, CTM

  Echo cancellation

  Noise reduction

  DTMF







HSPA+ tri-band or dual-band modules for global deployments, as well as quad-
band GSM/GPRS/EDGE and voice support .





Key Features

·         Extended temperature range (-40°C to +85°C)

·         Up to 14.4 Mbps (downlink)

·         Quad-Band GSM/GPRS/EDGE network access

·         Digital voice and data

·         Low power consumption

·         Easy upgrade path to new network technologies

·         Firmware/feature compatible with the AirPrime SL809x module

·         Supports industrial requirements with extended temperature

·         Standard PCI Express MiniCard form factor







Data:

AIR INTERFACE

HSPA+,GSM/GPRS/EDGE

DATA SPEED

Peak Download Rate

14.4Mbps

Peak Upload Rate

5.76Mbps

FREQUENCY BANDS

WCDMA

MC8090: 850/1900/2100 MHz

MC8092: 900/2100 MHz

GSM/GPRS/EDGE

850/900/1800/1900 MHz

APPROVALS

Regulatory

MC8090: FCC, IC, PTCRB

MC8092: CE, GCF-CC

Carrier

AT&T, NTT DoCoMo

CPU PERFORMANCES

IO voltage

1.8 V

AUDIO

Digital audio

PCM

Echo cancellation & noise reduction

YES

DTMF

YES

INTERFACES

UART

1X 4-Wire

USB

USB 2.0 High Speed

Main Radio Disable

YES

Vref

1.8V

GPIO

4

Flash LED output

1

SIM interface

1.8 or 3V

ANTENNA

U.FL Antenna Connectors

3

Diversity

YES

LOCATION SOLUTION

Standalone, A-GPS, gps XTRA

CONTROL OPTIONS

AT commands, CnS

TCP/IP

TCP/UDP

DRIVERS

Windows® Mobile 6.5

Windows® CE 6.0

Android

Linux

DEVICE DIMENSIONS

51 x 30 x 4.5mm

OPERATIONAL TEMPERATURE

-40°C to +85°C







Application :

Ideal for industrial M2M and mobile computing solutions, AirPrime® MC embedded modules deliver high speed connectivity, with a wide selection of advanced air interfaces, including LTE frequencies. Based on the PCI Express Mini Card standard with a USB interface, the MC Series modules offer an easy upgrade path to new network technologies and global access to high speed networks.





Module display:

Airprime 3G HSDPA Module MC8090 with An Integrated GPS Receiver
