MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable

MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable
MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable

Large Image :  MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable

Product Details:
Place of Origin: Shen Zhen ,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-MMCX-5
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $0.7/pcs ~0.9$/pcs
Packaging Details: 100pcs/PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 30kpcs/month
Detailed Product Description
Product Name: RF Coaxial Connector Application: RF Productions
Material: Body :Brass Temperature Range: -40℃~+85℃
Durability: Mating Cycles ≥500 VSWR: 1.15
High Light:

bnc coaxial connector

,

coax cable connectors

MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable





Introduction :

 The series of MMCX RF connector is a kind of microminiaturized product smaller than MCX. It is small, light, joins convenient and reliable. Use for to system volume, serious to have small-scale communication, network equipment that require join the coaxial cable of the radio frequency extensively.



SMT surface mount MMCX female pcb mounting
0~6GHz impedance, 50 ohms
very MINI size, mate to cable crimping RG178 available

MMCX connector The MMCX series is also called MicroMateTM. It is one of Amphenol's smallest RF connector line and was developed in the 1990's. MMCX is a micro-miniature connector series with a lock-snap mechanism allowing for 360 degrees rotation enabling flexibility in PCB layouts. MMCX connectors conform to the European CECC 22000 specification.

The micromate family of products is a 6 GHz 50 Ω interconnect system. A range of connectors are available including surface mount, edge card, and cable connectors.







Key Specification:

BODY:   Brass, gold or nickel plated

Center Contact:: Brass, beryllium-Copper

Insulation: Teflon

Gasket: Silicone

Crimp Ferrule: Annealed Copper or Brass



Impedance: 50W nominal

Frequency Range: 0~6GHz

Rating Voltage: 500V

Dielectric Withstanding Voltage: 1500V

Contact Resistance: 3.0 mW MAX

Insulation Resistance: 5000 MW MIN.







Electrical


Characteristic Impedance

50ohm

2

Frequency Range

DC-6GHz

3

VSWR

1.15

4

Dielectric withstanding voltage

≥2500RMS,50Hz,at sea level

5

Dielectric Resistance

≥1GΩ

6

Contact Resistance

Outer Contact≤2.5mΩ ;Center Contact≤5.0mΩ



Mechanical

1

Durability

Mating cycles ≥500





Material and plating



Description

Material

Plating

1

Body

Brass

Au

2

Insulator

PTFE

3

Center conductor

Phosphor copper

Au





Environmental

1

Temperature Range

-40℃~+85℃

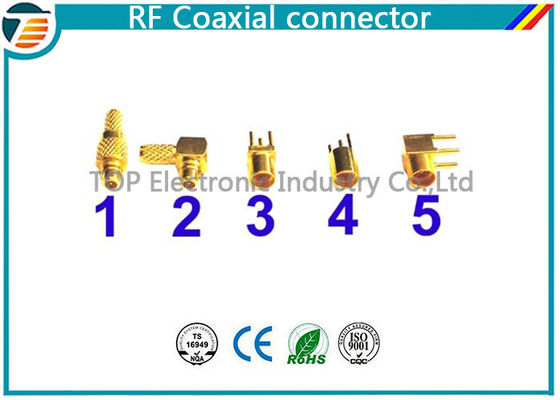

Ordering information :

TOP-MMCX-1

MMCX straight male for RG174

TOP-MMCX-2

MMCX Right angle male for RG174

TOP-MMCX-3

MMCX Straight female for PCB

TOP-MMCX-4

MMCX straight female for PCB

TOP-MMCX-5

MMCX Right angle female for PCB





Advantage:



1.Small size, light and connection easy
2.Snap-on Coupling
3.Low RF Leakage





Application:



Base stations, cable assemblies, PCMCIA Cards, broadband communications, RF test, Instrumentation, Telecommunications, GPS receivers, Components.





Drawing:



MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable 0





Production show:



MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable 1









MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable 2









MMCX Male Crimp Connector Right Angle 50 OHMs For RG316 Coaxial Cable 3










Our main RF coaxial connector :

All series connectors:

SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,

BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc



We use only the best quality  components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
