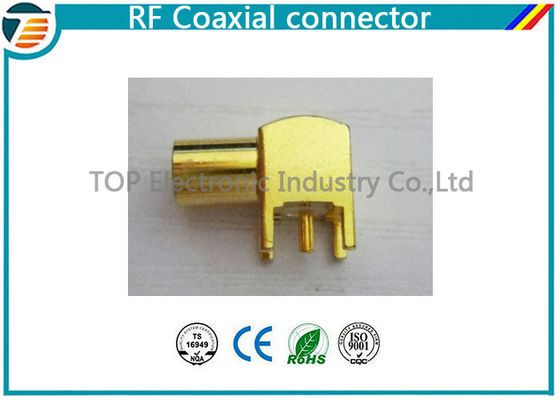

PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight

China PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight supplier
PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight supplier PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight supplier PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight supplier PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight supplier

Large Image :  PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight

Product Details:

Place of Origin: Shen Zhen ,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-MCX-7

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: $0.56/pcs ~0.7$/pcs
Packaging Details: 1000pcs/PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 30kpcs/month
Contact Now
Detailed Product Description
Product Name: RF Coaxial Connector Application: RF Productions
Center Contact: ≤ 5 MΩ Insertion LossRange: 0.18 DB /3 GHz
Durability: ≥ 500(cycles) Vibration: 100 M/s2 (10 ~500Hz)

PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight



Introduction:

MCX series are snap-lock coupling micro-miniature coaxial connectors which can operate at impedances of 50 ohms and 75 ohms. With small size, less weight, compact structure and easy fit, they are used in small sized communication equipment, PNC, GPS, WLAN, radio instruments and other miniaturized electrical equipment. MCX connectors, particularly for PCB connection, are 30% smaller in size than SMB connectors.





MCX micro-miniature connectors provide repeatable performance from DC to 6 GHz. The design of these devices has taken into consideration the need for size reduction, low weight; durability and reliable performance. The MCX devices enable a 30% space reduction over similar SMB/SMC types. The MCX is available for affixement to industry standard cable and as printed circuit board device. The "snap-on" connection feature between devices offers the user ease of assembly in dense packaging layouts. Applications for the MCX are those where size, weight performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.







ENVIRONMENTAL  CONDITIONS



Temperature Range

-55℃~+155℃(PE Cable -40℃~+80℃)

Frequency Range

DC~3 GHz

Impedance

50 Ω

Working Voltage

250 v    r.m.s, at sea

Vibration

100 m/s2 (10 ~500Hz)

Salt spray test

5% NaCl solution; test time≥48h

Waterproof Sealing

IP67





TECHNICAL  CHARACTERISTICS

Withstanding Voltage

750 V  r.m.s, at sea level

Contact resistanceel



Center contact

≤ 5 mΩ

Outer contact

≤ 2.5 mΩ

Insulation resistance

≥ 1000 MΩ

Center conductor retention

≥ 0.28 N

Engagement force

≤ 25 N

Disengagement force

8 N~20 N

Insertion Loss

0.18 dB /3 GHz

V.S.W.R



Straight

≤ 1.20

Right Angle

≤ 1.35

Shielding Efficiency

≥ 70 dB /1 GHz

Durability

≥ 500(cycles)





Ordering information



TOP-MCX-1

MCX straight male for RG174

TOP-MCX-2

MCX Right angle male for RG174

TOP-MCX-3

MCX Straight  female for RG174

TOP-MCX-4

MCX straight female for RG174

TOP-MCX-5

MCX straight female for PCB

TOP-MCX-6

MCX straight female for PCB

TOP-MCX-7

MCX Right angle female for PCB



Applications

·         Instrumentation

·         Process Controls

·         Test and Measurement

·         Microwave Components

·         Video System





Drawing

PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight







Package:



PCB Assembled RG174 RF Coaxial Connector MCX Gold Plated Less Weight










Our main RF coaxial connector :

All series connectors:

SMA,SMB,SMC,MCX,MMCX,N,FME,TNC,

BNC,TNC,FAKRA,GT5,U.FL, GSC,IPEX etc



We use only the best quality  components to ensure the standard of our product range is of the highest caliber.All products we sold out are strictly selected and tested by our QC department.
