1SS404 & H3F Ultra-High Speed Switching (Trr<60ns) Low VF Compact Design High Reliability Low Power Loss ESD Protection RoHS Compliance Cost-Effective for Automotive & Industrial Apps

1SS404 & H3F Ultra-High Speed Switching (Trr<60ns) Low VF Compact Design High Reliability Low Power Loss ESD Protection RoHS Compliance Cost-Effective for Automotive & Industrial Apps

Features

Ultra-High Switching Speed: Features an extremely short reverse recovery time, which is its most important characteristic.

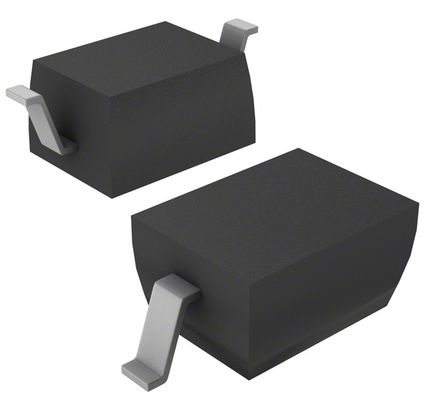

Small Package: Comes in the SOD-523 package, which is very small (approximately 1.2mm x 0.8mm), saving printed circuit board (PCB) space.

Low Power Consumption: Exhibits low forward voltage and low reverse current.

High Reliability: Features a glass package that offers good stability and durability.

Applications

Detection and rectification in high-frequency circuits

High-speed switching circuits

RF circuits in the VHF/UHF bands

Portable electronic devices (due to its small size and low power consumption)

Polarity protection circuits

Signal clamping circuits

Description

The 1SS404,H3F is a silicon epitaxial planar switching diode housed in a very small SOD-523 (also known as SC-79) package. Its core design goal is to achieve extremely high switching speed and very low reverse recovery time, making it ideally suited for high-frequency circuit applications.
