BD7411G-TR 40V 3A Driver with 0.15Ω RON 97% Efficiency in WLCSP-6 Features Thermal/Current/UVLO Protection AEC-Q100 Grade 1 for Automotive Motor Control

BD7411G-TR 40V 3A Driver with 0.15andOmega; RON 97% Efficiency in WLCSP-6 Features Thermal/Current/UVLO Protection AEC-Q100 Grade 1 for Automotive Motor Control

andnbsp;

Features

Versatility andamp; Low Cost: Designed for a wide range of general-purpose analog circuits, offering high cost-effectiveness.

Wide Supply Voltage Range:

Single-Supply Operation: +3 V to +32 V

Dual-Supply Operation: andplusmn;1.5 V to andplusmn;16 V
This flexibility allows it to be used in both low-voltage, battery-powered devices and higher industrial voltage environments.

Low Power Consumption: Features a low typical quiescent supply current, making it suitable for battery-powered portable devices.

Gain Bandwidth Product: 1 MHz (Typ.), capable of handling audio and many sensor signal frequencies.

Small Package: The SOT-23-5 package occupies minimal PCB space, ideal for modern high-density board designs.

Internal Frequency Compensation: Requires no external compensation components, simplifying circuit design.

Large Output Voltage Swing: The output stage is designed to provide a relatively wide output voltage range closer to the supply rails.

andnbsp;

Applications

Sensor Signal Conditioning (e.g., for temperature, pressure, light sensors)

Active Filters (low-pass, high-pass, band-pass)

Voltage Follower / Buffer

Comparator (in applications where high precision is not critical)

Small Signal Amplification

Integrators, Differentiators

Portable Electronic Devices

Industrial Control Systems

andnbsp;

Description

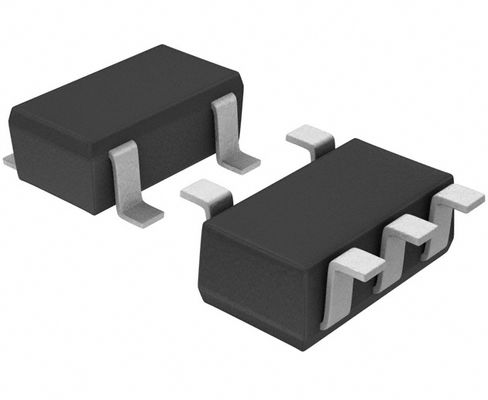

The BD7411G-TR is a general-purpose, low-power, single operational amplifier. It comes in a compact SOT-23-5 package, offering

fundamental op-amp functionality with a good balance of cost, performance, and size. The andquot;-TRandquot; suffix typically indicates tape and reel

packaging for automated surface-mount assembly.
