5 In 1 Combo Antenna 1 X GPS & GLONASS 2 X MiMo Wi-Fi 2 X MiMo 4G LTE

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

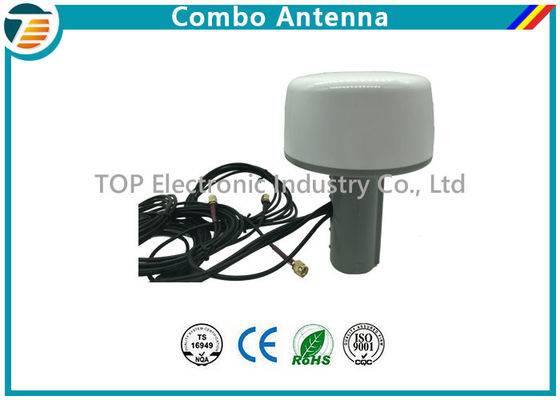

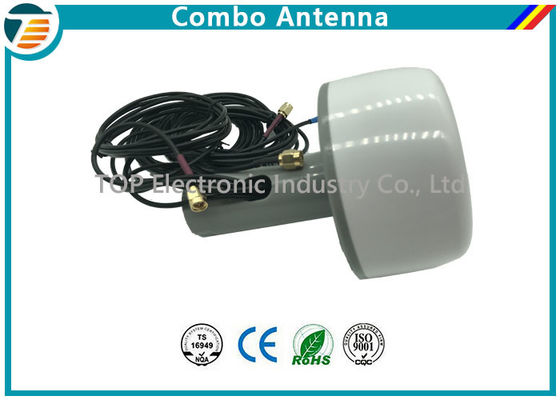

Large Image :  5 In 1 Combo Antenna 1 X GPS & GLONASS 2 X MiMo Wi-Fi 2 X MiMo 4G LTE

Product Details:
Place of Origin: China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS WIFI MIMO LTE MIMO-01
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: 1pcs/box, 100 box/carton
Delivery Time: 5-7 working days after getting the payment
Payment Terms: L/C, T/T,Paypal
Supply Ability: 100000pcs/month
Detailed Product Description
Product Name: Combo Antenna Frequency: 1575.42^1602MHz
Polarization: RHCP Dims: 25*25*4mm
Connector: SMA, SMB Etc Working Temp: -40℃~+85℃
High Light:

gsm gprs gps module

,

wireless gsm module

5 In 1 Combo Antenna 1 X GPS & GLONASS 2 X MiMo Wi-Fi 2 X MiMo 4G LTE



Part number: TOP-GPS&GLS+WIFI MIMO+LTE MIMO-01



Information :



5 in 1 combined antenna

o 1 x GPS & GLONASS

2 x MiMo Wi-Fi
2 x MiMo 4G LTE

o Operating Frequency:
698~960MHz/1710~2690MHz (LTE)
1575.42 ~1602 MHz (GPS/Glonass),
2400-2483.5MHz (WiFi),
4900-5825 MHz (WiFi)



Network operator flexibility - as the antenna is wideband, a new
antenna is not needed per network operator - works on most networks



The antenna and electronics operates down to -40
degrees and up to 85 degrees C which is seldom achieved in
comparable products.



Vandal and water resistant



Overview :



o The MIMO-1 incorporates 5 antennas in a single rugged low profile antenna housing. Two LTE/4G/3G antennas covering all cellular bands and also achieves MIMO data speed increases since the two antennas provide space and pattern diversity. Similarly two dual band Wi-Fi antennas give blistering speeds at both 2.4 and 5GHz and full MIMO advantage. The fifth antenna is a high performance active GPS/GLONASS module operating down to -40 degrees.

o The antenna exceeds the performance of most competitors due to the care and attention to radiation patterns of all radiators. An excellent compromise between omni-directionality, pattern diversity and good radiation at low (horizontal) angles is achieved. Main applications are for industrial vehicles, M2M and other IoT using a range of radio technologies. Whilst this antenna is predominately marketed for industrial purposes it could quite easily be used on a motorhome, caravan or barge, particularly if you were looking for a more permanent installation than the portable antenna we offer.



Application :



· HD Video over LTE -First Responder and Emergency Services

· Intelligent Transport Systems

· Internet of Things (IoT market)

· High Definition Video Broadcast Systems

· Wireless LTE MIMO M2M Devices

· Digital Signage





Specification :



Item Specifications
GPS&GLONASS Antenna Frequency Range 1575.42^1602MHz
Polarization RHCP
Impendance 50Ω
Dimension 25*25*4mm
Gain 28±2dB
Noise Figure ≤1.5dB
Supply Voltage 3~5V DC
Current Consumption <20mA
V.S.W.R <2.0
WIFI Antenna MIMO Frequency Range 2400~2483.5MHz/4900~5825MHz
V.S.W.R <2.5
Polarization Linear
Gain 2dBi
Impendance 50Ω
LTE Antenna MIMO Frequency Range 698~960MHz/1710~2690MHz
V.S.W.R <2.5
Polarization Linear
Gain 3dBi
Impendance 50Ω
Mechanical Cable RG174 or others
Connector SMA or others
Radome Material ABS
Mounting Method Screw
Environmental Operating Temperature -40℃~+85℃
Relative Humidity Up to 95%
Ingress Protection IP67 (exclude cable outlet)
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant





Drawing:

5 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 0



Radiation Pattern :

GPS:

5 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 1

WIFI:

 5 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 25 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 3



LTE :



5 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 45 In 1 Combo Antenna 1 X GPS & GLONASS  2 X MiMo Wi-Fi  2 X MiMo 4G LTE 5



Our  Antenna :



---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ



 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
