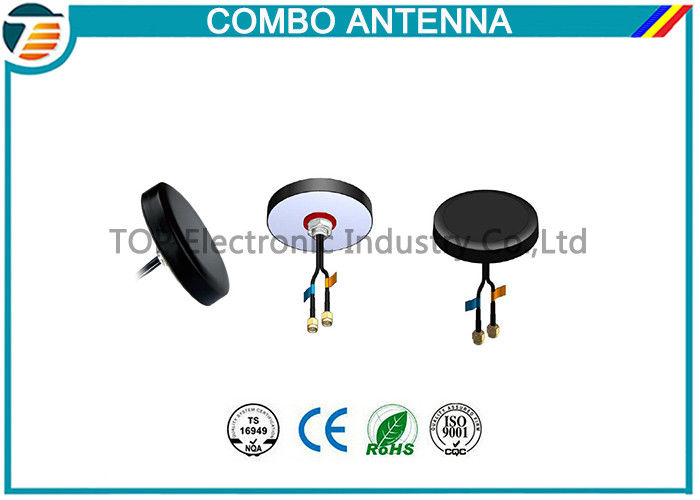

Low Profile GSM GPS Antenna For Vehicle Tracking External Wifi Antenna
andnbsp;
andnbsp;
Description:
The antenna can be mounted behind the window, on dash board.
andnbsp;
This type antenna also can be made GPS+ WIFI ,GSM+GPS+WIFI combo antenna.
andnbsp;
andnbsp;
andnbsp;
Key Feature:
andnbsp;
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Low profile structure without a whip
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Both permanent and magnetic mountings are available
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Covers all the mobile communication network
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; IPX67 Fully waterproof
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Wifi frequency embedded
andnbsp;
andnbsp;
Specification: andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp; andnbsp;andnbsp;
|
Item
|
Specifications
|
|
GPS Antenna
|
Dielectric
Antenna
|
Center Frequency
|
1575.42andplusmn;1MHz
|
|
Band Width
|
CFandplusmn;5MHz
|
|
Polarization
|
RHCP
|
|
Gain
|
2dBic(Zenith)
|
|
V.S.W.R
|
＜1.5
|
|
Impendance
|
50andOmega;
|
|
Axial Ratio
|
3dB(max)
|
|
LNA
|
Gain
|
28andplusmn;2dB
|
|
Noise Figure
|
＜1.5
|
|
Ex-band Attenuation
|
12dB@CF+50MHz/16dB@CF-50MHz
|
|
V.S.W.R
|
＜2.0
|
|
Supply Voltage
|
2.2~5V DC
|
|
Current Consumption
|
5~15mA
|
|
GSM Antenna
|
Frequency Range
|
824~960MHz/1710~2170MHz
|
|
V.S.W.R
|
＜2.5
|
|
Polarization
|
Linear
|
|
Gain
|
2dBi
|
|
Impendance
|
50andOmega;
|
|
Mechanical
|
Cable
|
RG174--4M
|
|
Connector
|
SMA
|
|
Radome Material
|
ABS
|
|
Mounting Method
|
Screw
|
|
Environmental
|
Operating Temperature
|
-40℃~+85℃
|
|
Relative Humidity
|
Up to 95%
|
|
Ingress Protection
|
IP65~IP67 (exclude cable outlet)
|
|
Vibration
|
10 to 55Hz with 1.5mm amplitude 2hours
|
|
Environmentally Friendly
|
ROHS Compliant
|
andnbsp;
andnbsp;
andnbsp;
Advantage:
With screw mounting, it is more firm from the carrier.
andnbsp;
andnbsp;
Application:
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Vehicle tracking
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Asset tracking
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; GPS Navigation
andmiddot;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp;andnbsp; Telemetry Application
andnbsp;
andnbsp;
Click here to find the data sheet:
TOP-GSM GPS03.pdf
andnbsp;
Drawing:
andnbsp;
andnbsp;
andnbsp;
andnbsp;
andnbsp;
Ourandnbsp; Antenna :
---Powerful Randamp;D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
andnbsp;
FAQ
andnbsp;1. Whatand#39;s the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
andnbsp;
2. andnbsp;How about the defective rateandnbsp;?
Answer: Less than 1%.
andnbsp;andnbsp;
andnbsp;3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
andnbsp;
andnbsp;Our high quality products , competitiveandnbsp; price and professional service, be sure to meet your need for all kinds of components.andnbsp;andnbsp;andnbsp; ^_^
