Product Details:
Payment & Shipping Terms:
|
| Power Supply: | 5V | USB: | 2.0 |
|---|---|---|---|
| GPS/GSM//GPRS Module: | 3.4~4.5v | Normal Operation Temperature:: | -20 °C To +70 °C |
| Used For: | All Mini PCIE Modules | Interface: | 52pin |
| High Light: | wireless charging development kit,Wifi Development Kit |
||

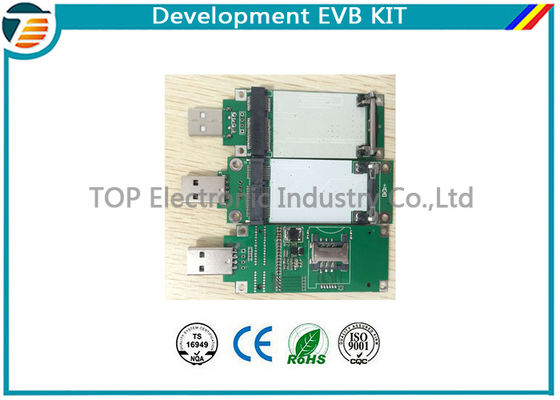

3G 4G Module Wireless Development Kit Dedicated USB 2.0 To Mini PCIE Card
Feature:
The Mini PCIE Adapter board with 52pin interface defines a USB signal and 3.3V voltage, is specifically designed to suit the mini PCIE format ,the riser is through the USB interface 5V voltage LDO chip converts 3.3V, supply module and USIM / SIM work, signal bus for USB signals
This carrier board provides a solution for customers who were using the UART feature of the MC series modules. The mini PCIe adapter board offers an alternative now that there is no Sierra Wireless product in MC Series footprint.
Specifications Description:
Product Dimensions: 85 * 31mm
2.Mini PCI-E is designed to meet industry specifications version 1.30
3.USB designed to meet industry standards USB 2.0, backward compatible with 1.1 specification
4. The full-height riser fit size (30 * 50-51mm) WWAN / 3G / WiFi modules (USB bus)
5. Working status LED time display
6. The product does not require any software drivers
Information:
|
Operation Conditions |
|
|
Voltage/Current Range |
DC 5.0V ± 5% / <210mA |
|
Operating Temperature |
0°C - 50°C |
|
Storage Temperature |
-20°C - 70°C |
|
Operating Humidity |
RH 95% (Non-Condensing) |
|
Storage Humidity |
RH 95% (Non-Condensing) |
|
Physical Specification |
|
|
Dimensions |
85*31MM |
|
Weight |
4.5 g(with USB plug) |
Advantage:
The Mini PCI Express to USB adapter is designed to ease development and testing of systems intended to use a Mini PCI Express module.
Insert your USB type PCIe module such as HSPA, GPS, 802.11a/b/g to the adapter and then plug it in the USB port.
100% brand new and high quality
Supports 3*5cm mSATA SSD to USB 3.0 interface.
High end quality product with sleek case design .
USB 3.0 interface. Plug and Play.
Compatible with Windows 2000/xp/Vista/7/8/mac os 7.0 and above.
With Simple operation and cheaper price, it is very popular by customers.
Application:
The product is suitable for many brands of 3G 4G module, such as Huawei, ZTE, AIRCARD, sierra wireless, Cinterion, Telit, Long Shang, SIMCOM, QUECTELSAMSUNG, and other brands 3G 4G card for WiFi module (USB bus) and Mini PCI-E interface card (USB bus) Inter,net access module via the USB port brush, debugging, testing, and release can also be used to test the USB bus via USB.
Package information:
1 x USB3.0 to PCIE adapter card
