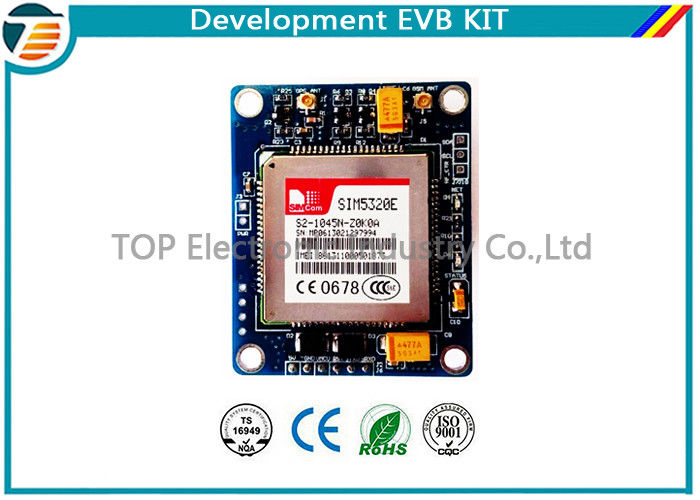

SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable

SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable
SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable

Large Image :  SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable

Product Details:
Place of Origin: China
Brand Name: SIMCOM
Certification: CE
Model Number: SIM5320E EVB KIT
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: 85usd/pcs
Packaging Details: standrad package
Delivery Time: 3-5 working days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 100pcs/month
Detailed Product Description
Power Supply: 5V Weight:: 350G
GPS/GSM//GPRS Module: 3.4~4.5v Normal Operation Temperature:: -30 °C To +80 °C
Used For: SIM5320E Simcard Holder: Drawer 2.54mm
High Light:

development board kit

,

wireless charging development kit



SIM5320E Wireless Development Kit With GPS GSM Antenna and RF cable



SIMCOME 3G module SIM5320E Development board including the module GPS GSM antenna and RF cable



The SIM5320 series is Dual-Band HSDPA/WCDMA and Quad-Band GSM/GPRS/EDGE module solution in a SMT type which supports HSDPA up to 3.6Mbps for downlink data transfer.



Introduction:

In order to save cost and time for our customers, our R & D department developed this EVB KIT.

The General structure as bellow:

Power Supply: DC 5V 1A or 1A above.

Communication Interface: A set of TTL level serial port, compatible with 5V 3.3V microcontroller; a USB interface ,can connect with computer directly in order to make a debugging.

GPS antenna interface: a group of IPEX mini antenna interface default connect with active GPS antenna.

GSM antenna interface: a group of IPEX mini antenna interface provided by default PCB antenna.

SIM card interface: Drawer SIM card interface.



USB Interface: mini USB interface.

Voice microphone interface: leads, the interface is a 2.54 * 4P single row of needle form.

Other interfaces: a group IIC interface, a control module can open and close the interface (the default module from the start)



Indicator: a 0603 LED, for working status indication module, a 0603 LED, network status indication for the module







SIM5320E EVB KIT chip Introduction:



Standard

Frequency

SIM5320E

GSM

GSM 850MHz

EGSM 900MHz

DCS1800MHz

PCS1900MHz

WCDMA

WCDMA 850MHz



WCDMA 900MHz

WCDMA 190MHz



WCDMA 210MHz

HSPA

HSDPA

HSUPA







Advantage:

Competitive price, good quality, fast delivery time, Received the majority of customers favorite.



SIM5320E: Dual-Band UMTS/HSDPA 900/2100MHz

                  Quad-Band GSM/GPRS/EDGE  850/900/1800/1900MHz





     GPRS multi-slot class 12

*            EDGE multi-slot class 12

*            WCDMA 3GPP  release 5

*            Output power

              - UMTS 850/1900: 0.25W

              - UMTS 900/2100: 0.25W

              - GSM850/GSM900: 2W

              - DCS1800/PCS1900: 1W

*           Control Via AT Commands

*            Supply voltage range: 3.3V~ 4.2V

*            Extended Operation temperature: -30°C to +85°C

*            Dimension:  30 * 30* 2.9MM

*           Weight: 5.6g



 Specifications  for  GPS
*  A-GPS: MS-Based, MS-Assisted
*  Stand-alone GPS

Support embedded Script Language
*  LUA Script Language
