N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178

China N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier
N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178 supplier

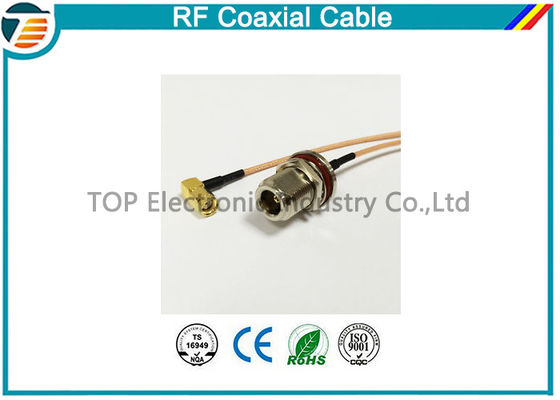

Large Image :  N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178

Product Details:

Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-N-C01

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 1.2$ ~1.8$/pcs
Packaging Details: 100pcs/PE bag
Delivery Time: 3-4 working days after receiving the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 40k pcs/month
Contact Now
Detailed Product Description
Product Name: Rf Coaxial Cable Connector: N Type Female - SMA
Cable: RG136,RG174 ,RG178 Etc Length Of The Cable: 1cm,20cm, 50cm Etc
Signal Loss: 0.25 DB Per Ft Impedance: 50 Ohm

N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178





Cable Introduction:



Series N are very popular screw--coupling middle power coaxial connectors.
The type N connectors are a kind of  low to medium power connectors, with screw coupling mechanism, are widely used connect of  the  RF coaxial--cable in electronic equipment and instruments.





Key feature:

For this type coaxial cable, one side connector is N female ,

Another side connector can be chose: SMA, SMB, SMC,MCX,MMCX,BNC,TNC,N type IPEX ,etc, and also can be made Male or female, right angle or straight.

The cable length will be 5cm, 10cm,15cm,20cm and customized.





Characteristics:

Resistant to temperature,

Performance and low wastage.

Signal loss of 0.25 dB per ft

  • Insulation: Solid PE (Polyethyline)
  • Outer Diameter: 0.405 inches nominal
  • Velocity of Propagation: 66%
  • Operating Temperature: -40C to +80C
  • Loss @ 50 MHz: 1.30 dB per 100 ft
  • Loss @ 100 MHz: 1.90 dB per 100 ft
  • Loss @ 200 MHz: 2.70 dB per 100 ft
  • Loss @ 400 MHz: 4.10 dB per 100 ft
  • Loss @ 1000 MHz: 8.00 dB per 100 ft
  • Loss @ 4000 MHz: 21.50 dB per 100 ft
  • RoHS compliant







Ordering Information :

Part number

Connector

Cable

Length of cable

TOP-N-C01

N(F)-SMA(M)

RG58U

10cm or customized

TOP-N-C02

N(F)-SMA(M)

RG174

10cm or customized

TOP-N-C03

N(F)-MMCX(M)straight plug

RG174

10cm or customized

TOP-N-C04

N(F)-MMCX(M)right angle plug

RG178

10cm or customized

TOP-N-C05

N(F)-IPEX

RG316

10cm or customized

TOP-N-C06

N(F)-open end(without welds)

RG316

10cm or customized

TOP-N-C07

N(F)-IPEX

1.13/1.37

10cm or customized

Notice:

1. the connector at the end can be customized.

2. the cable also can be made by others, customized











Application:

RF coaxial cable with the device

Can be used in 2.4G (WIFI , WLAN).

GSM, GPRS, CDMA, GPS modules and an between.







N type connector example show:

N Type 50 OHMS Different RF Coaxial Cable RG136 , RG174 , RG178








Our  Cable :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price





FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
