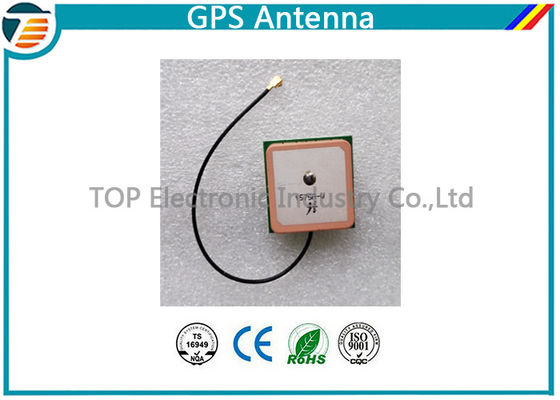

Cellphone High Gain GPS Antenna 1575.42 MHz with IPEX Connector TOP-GPS-AI05

China Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier
Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05 supplier

Large Image :  Cellphone High Gain GPS Antenna 1575.42 MHz with IPEX Connector TOP-GPS-AI05

Product Details:

Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS-AI05

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: 2.5$/PCS~$3/PCS
Packaging Details: 1pcs/box (1pcs/PE bag), 100pcs/carton
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T,Paypal, Western Union
Supply Ability: 10k pcs/ month
Contact Now
Detailed Product Description
Product Name: GPS Internal Antenna Size: 25*25*9.5mm
Gain: 20 Dbi Cable: 1.13,1.37 Etc
Operating Temperature: -40℃~+85℃ Connector: IPEX, U.FL, GSC

Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05





The size for internal patch active GPS antenna:

13x13 ,15x15, 18x18, 20x20, 25x25, 27x27, 37x37,





Quick Introduction:

·         Frequency: GPS 1575.42 MHz

·         Impedance: 50 Ohms

·         Polarization: RHCP

·         Gain: 24-26dBi

·         Supply Voltage: 3V to 5V

·         Connector: UFL

·         Housing size: 25.3mm x25.3mm x 9mm

·         Operating temperature: -40°C to +85°C





Specification:



Item

Specifications

Antenna

Center Frequency

1575.42±3MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

5dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RF1.13 or others

Connector

IPEX or others

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 75%

Vibration

10 to 55Hz with 1.5mm amplitude2hours

Environmentally Friendly

ROHS Compliant



Electrical Characteristics

·         The antennas contains a high performance GPS patch antenna and a high-tech low noise amplifier

·         Provides excellent signal amplification and out-band-rejection for the receiver

·         Mounting: Magnetic base/Adhesive

·         Water resistant





Ordering information:

Part# Size(mm)
TOP-GPS-AI01 13*13*6.2MM
TOP-GPS-AI02 15*15*7MM
TOP-GPS-AI03 18*18*7.8MM
TOP-GPS-AI04 20*20*8MM
TOP-GPS-AI05 25.3*25.3*9MM
TOP-GPS-AI06 37*29*6MM /37*29*8MM
TOP-GPS-AI07 37*37*5.5MM /37*37*7.5MM
TOP-GPS-AI08 27*27*9MM
TOP-GPS-AI09 D45*7.8MM
TOP-GPS-AI10 30*25*4MM







Application:

 Cell phone ,for GPS  receivers ,mobile application etc





Drawing:



Cellphone High Gain GPS Antenna 1575.42 MHz  with IPEX Connector TOP-GPS-AI05



Click here to find the data sheet

TOP-GPS-AI05.pdf






Our  Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
