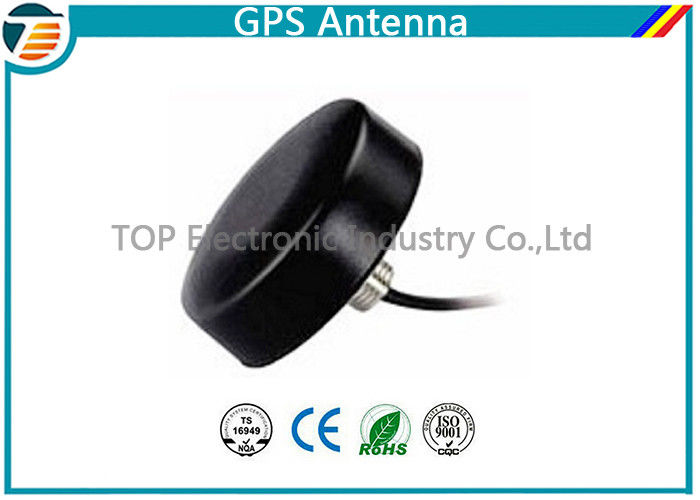

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System
1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System 1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System 1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System 1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

Large Image :  1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System

Product Details:
Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS02
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 2.3$~3$/pcs
Packaging Details: 1pcs/box (1pcs/PE bag), 100pcs/carton
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: L/C, T/T,Paypal
Supply Ability: 20k pcs/ month
Detailed Product Description
Product Name: GPS Active Antenna Size: 46*14mm
Gain: 28 Dbi Mounting Method: Screw
Operating Temperature: -40℃~+85℃ Ingress Protection: IP67
High Light:

gsm gps antenna

,

gps receiver antenna

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System





Description:

  • Mount option: screw mount
  • Connector type options: straight or right angle BNC,TNC,MCX,MMCX,SMA,SMB-F,SMB-M,SMC,FAKRA,HRS GT5 etc. (Default: straight SMA type)
  • Cable length options: maximal 1M,3M, 5M etc



SPECIFICATION

Size: D46x15mm

Dieletric Antenna

Center Frequency 1575.42 MHz3 MHz

V.S.W.R 1.5 : 1

Band Width 5 MHz

Impendence 50 ohm

Polarization Type RHCP

LNA / Filter

LNA Gain(Without cable) 282 dB Typical

Noise Figure 1.5 dB

DC Voltage 2.2~5 V

DC current 5~15 mA

Cable RG174 5m / 3m / or others

Connector SMA / SMB / MCX / or others

Housing Black or others

Working Temp -40~+85

Humidity 55%~75%RH

Waterproof IP67







Specifications:



Item

Specifications

Antenna

Center Frequency

1575.42±1MHz

Band Width

CF±5MHz

Polarization

RHCP

Gain

2dBic(Zenith)

V.S.W.R

<1.5

Impendance

50Ω

Axial Ratio

3dB(max)

Dimension

25*25*4mm

LNA

Gain

28±2dB

Noise Figure

<1.5

Filter Insertion Loss

<3dB

Ex-band Attenuation

12dB@CF+50MHz/16dB@CF-50MHz

Supply Voltage

2.2~5V DC

Current Consumption

5~15mA

V.S.W.R

<2.0

Mechanical

Cable

RG174--3M

Connector

SMA

Radome Material

ABS

Mounting Method

Magnet

Environmental

Operating Temperature

-40℃~+85℃

Relative Humidity

Up to 95%

Ingress Protection

IP65~IP67

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant





Application:

  • Compatible with all GPS devices/systems that apply active antennas
  • Garmin / Marine positioning system
  • Global positioning system





Drawing:



1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System 0



Radiation Pattern  :

1575.42 MHz Wireless High Gain GPS Antenna With Global Positioning System 1











Click here to find the data sheet

TOP-GPS02.pdf
