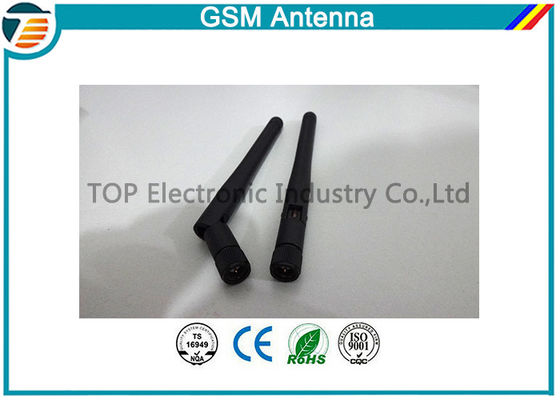

Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz

Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz
Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz

Large Image :  Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz

Product Details:
Place of Origin: Shen Zhen,Guang dondg,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GSM06-1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: 0.6$~0.9$/pcs
Packaging Details: 1pcs/ PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 20k pcs/month
Detailed Product Description
Product Name: GSM GPRS Antenna Size: 108*10mm
Weight: 7g Gain: 2 DBi
Connector: SMA,RP-SMASMB, Color: Black
High Light:

3g gsm antenna

,

quad band gsm antenna

Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz





Special Features:

It is External rubber antenna with SMA connector with a 0 to 90 degrees bend for flexible use.

Global System for Mobile Communication

900/1800MHz phone antenna,

Broadband design for GSM systems.



Besides GSM ,For this type also can be made 2.4GHZ WIFI and 3G frequency







Specifications

900&1800MHz Dual Band Terminal Antenna, rubber duck antenna

Size: D10x110mm

Frequency(MHz) 824~894 MHz/1710~1990 MHz

880~960 MHz/1710~1990 MHz

V. S. W. R(in BW ) ≤ 2.0: 1

Gain(Zenith) 2 dBi

Polarization Vertical

Impedance 50 ohm

Connector SMA / FME

Plastic Housing Black.





Electrical Characteristics



1.1 GSM Antenna



No.

Item

Specifications

1

Frequency(MHz)

824~894/1710~2170MHz or

 880~960/1710~2170MHz

2

V.S.W.R(in BW )

≤2.5

3

Gain(Zenith)

2 dBi

4

Polarization

Linear

5

Impedance

50 Ω

6

Band width

700MHZ@900MHZ / 1700MHZ@1800MHZ

7

Azimuth

Omni-direction

8

Polarization

Linear polarization

9

Working Temp

-45℃~+85℃











1.2     Mechanical





No.

Item

Specification

1

Connector

SMA Male,RPSMA ,FME

2

Antenna body

Plastic

3

Color

Black

4

cable

Have no

5

Length of the antenna

108 mm

6

Net  weight

7g







Main Application:

•    Military
•    Car navigation
•    AVL/Fleet Management
•    Vehicle tracking
•    Weather balloon
•    Security surveillance





Our Advantage:

Quality is essential to both of us, we believe that High quality, Low   price, Mutual benefit will be good basis of our cooperation.

All materials are ROHS approved

OEM service offered

Please contact us if you have any questions or other requirement.





How shall we place the module using an antenna with linear polarization

 The general rule is to place the module in the same direction as the sender/receiver antenna. If the antenna your antenna is communicating with has a horizontal antenna, place it horizontal. If the antenna is a vertical antenna, place it vertical. This can be an issue, since you might not know how the other antenna is placed.

The other rule is that if the antenna is close to the ground, place it horizontal. This will allow the radiated waves to travel across the ground, instead of getting caught in it.







Click here to find the data sheet:

TOP-GSM06-1.pdf





Drawing:

Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz 0









Radiation Pattern



Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz 1







S11 Log Magnitude

Wireless Rubber Flexible GSM GPRS Antenna 2 dBi Gain 900MHz / 1800MHz 2












Our  Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
