Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof

China Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof supplier
Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof supplier Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof supplier Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof supplier

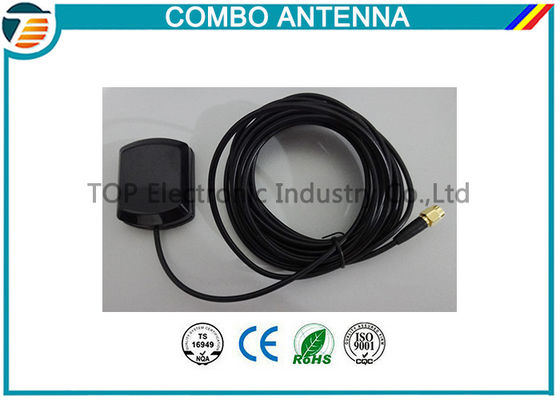

Large Image :  Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof

Product Details:

Place of Origin: China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-GPS/GLS01

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: 2.3$ ~2.6$/pcs
Packaging Details: 1pcs/box, 100 box/carton
Delivery Time: 5-7 working days after getting the payment
Payment Terms: L/C, T/T,Paypal
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: GPS GLONASS Antenna Size: 45*36*16mm
Mounting Method: Magnetic Gain: 28 Dbi
Connector: SMA,SMB,BNC,FRAKA Etc Length Of Cable: 1M,2M,3M Etc

Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof





Antenna Introduction:

This antenna with GPS, GLONASS two frequency points of Shuang feng patch to do the dual band antenna or GPS and GLONASS center frequency give consideration to the 2 frequency to achieve the star scheme. with one antenna to receive the GPS/GLONASS signal, a signal output to meet the GPS/GLONASS two.

Our GPS/GLONASS is very popular by customers, and has become our one of main products are exported to Europe.





Electrical Characteristics



1. Dielectric Antenna

                                                                      Form 1

No.

Item

Specifications

Post Environmental Tolerance

1

Center Frequency(MHz)

1575.42 MHz

±3 MHz

2

Band Width(MHz)

±5 MHz

±1 MHz

3

V.S.W.R(in BW)

1.5︰1

4

Gain(Zenith)

3 dB

±0.5 dB

5

Polarization

RHCP

6

Impedance

50 Ω





2. LNA/Filter

                                                                  Form 2

No.

Item

Specifications

Post Environmental Tolerance

1

LNA Gain

29±2 dB

±2.5 dB

2

Noise Figure

1.5 dB

3

Filter Out Band Attenuation

12dB  Min  f0+50MHz

16dB  Min  f0-50MHz

±1.0 dB

4

DC Voltage

2.2~5 V

5

DC Current

5~15 mA





Electrical Characteristics



1.  Dielectric Antenna

                                                                                Form 1

No.

Item

Specifications

Post Environmental Tolerance

1

Center Frequency(MHz)

1590MHz

±3 MHz

2

Band Width(MHz)

±25 MHz

±1 MHz

3

V.S.W.R(in BW)

1.5︰1

4

Gain(Zenith)

3 dB

±0.5 dB

5

Polarization

RHCP

6

Impedance

50 Ω













2.  LNA/Filter

                                                                       Form 2

No.

Item

Specifications

Post Environmental Tolerance

1

LNA Gain

29±2 dB

±2.5 dB

2

Noise Figure

1.5 dB

3

DC Voltage

2.2~5 V

4

DC Current

5~15 mA







3. Mechanical



                                                                   Form 3

No.

Item

Specification

1

Cable

RG174 3M or others

2

Connector

SMA or others

3

Plastic Housing

Black

4

Mounting

Magnet







4:Reliability

Condition:Temperature: 40±5℃

Load: DC=5V±0.5 V

Quantity: 2000pcs

Sustained Time: 480h



5:Environmental Specifications



Post Environmental Tolerance (Refer to the form 1~2 )

Condition:Temperature range 25±3℃

Relative Humidity range 55~75%RH

Operating Temperature range -40℃~+85℃

Storage Temperature range -40℃~+100℃



5.1 Moisture Proof

The device should satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature 40±2℃and the relative humidity 90~95% RH for 96 hours and 1~2 hours recovery time under normal condition.



5.2 Vibration Resist

The device should satisfy the electrical characteristics specified in form 1~2 after applied to the vibration of 10 to 55Hz with amplitude of 1.5mm for 2 hours each in

X ,Yand Z directions.





5.3 Drop Shock

The device should satisfy the electrical characteristics specified in form 1~2 after dropping onto the hard wooden board from the height of 30cm for 3 times each facet

of the 3 dimensions of the device.





5.4 High Temperature Endurance

The device should satisfy the electrical characteristics specified in form 1~2 after exposed to temperature 80±5℃for 24±2 hours and 1~2 hours recovery time under

normal temperature.





5.5 Low Temperature Endurance

The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the temperature -40℃±5℃for 24±2 hours and to 2 hours recovery time

under normal temperature.





5.6 Temperature Cycle Test

The device should also satisfy the electrical characteristics specified in form 1~2 after exposed to the low temperature -25℃ and high temperature +85℃ for 30±2 min each

by 5 cycles and 1 to 2 hours recovery time under normal temperature





Click here to find the data sheet:

TOP-GPS+GSL01.pdf



Drawing of the Antenna:

Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof





Packing:

Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof







Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof



Dielectric GLONASS Antenna Magnetic Gps Antenna Moisture Proof




Our  Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.
