Product Details:
Payment & Shipping Terms:
|
| Product Name: | 4G LTE Module | Chipset: | Qualcomm MDM9215 |
|---|---|---|---|
| Size: | 30 X 30 X 2.9mm | Interface: | USB 2.0 |
| LTE (FDD) Bands: | B2, B4, B5, B17 | Operation Temperature: | -40℃ To +85℃ |
| Technology: | LTE - Cat 3 | ||
| High Light: | Sierra Wireless Module,m2m wireless module |
||
SIMCOM 4G LTE Module SIM7100A Based On Qualcomm MDM9215 Multi Band
SIMCom presents an ultra compact and reliable wireless module SIM7100A which is based on Qualcomm MDM9215 multiple-mode LTE platform. SIM7100A is a complete multi-band LTE /WCDMA/GNSS module designed with very powerful processors integrating application core:Cortex™ A5(550MHz),three QDSP6 cores (Up to 500Mhz), allowing customer to benefit from small dimensions and cost-effective product solutions.
It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C,Keypad, PCM, etc. With abundant application capability like TCP/UDP/FTP/FTPS/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.
General features:
|
• Quad-Band LTE-FDD |
B2/B4/B5/B17 |
|
• Dual-Band UMTS/HSDPA/HSPA+ |
B2/B5 |
|
• Control Via AT Commands or Gobi API |
|
|
• Supply voltage range: |
3.4V~ 4.2V |
|
• Operation temperature: |
-40℃ to +85℃ |
|
• Dimension: |
30*30*2.9mm |
|
• Weight: |
5.8g |
|
• LTE-FDD/Rel-9 |
Cat3 |
|
• HSPA+ DC-HSPA+, |
Rel-10 HSPA+ |
|
• GNSS gps One Gen 8B; |
standalone; assisted, XTRA |
Specifications for Data transfer
• LTE
- Uplink up to 50Mbps,
- Downlink up to 100Mbps
• HSPA+
- Uplink up to 5.76 Mbps,
- Downlink up to 42 Mbps
• UMTS
- Uplink/Downlink up to 384Kbps
• CSD
- WCDMA data rate 57.6Kbps
- WCDMA 64kbps CSD for Video call
Other features
• USB Driver for Microsoft Windows 2000/XP/Vista/7/8
• USB Driver for Windows CE/Mobile
• USB Driver for Linux /Android
• RIL supporting for Android/Windows CE/Mobile
• Automatic installation
• Linux API SDK
• Firmware update via USB
• TCP/IP/IPV4/V6 Multi-PDP,MT PDP
• FTP/FTPS/HTTP/HTTPS/SMTP/POP3/DNS/MMS
• DTMF
• Gobi SDK to the Win7/Win8/Linux
• MBIM to Win8
• Source code of the PC manager of the device for reference
Interfaces
• USB2.0
• UART
• SIM card
• SPI
• I2C
• Constant current sink
• GPIO
• ADC
• PCM *
• SDIO
Certifications
• FCC
• PTCRB
• IC
• AT&T
• ROHS (on going)
• REACH (on going)
• Rogers (on going)

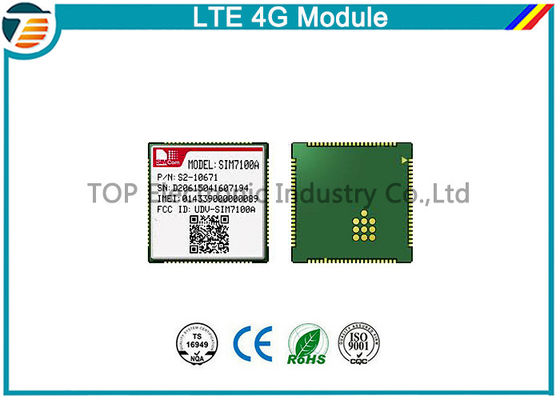

Module show:
