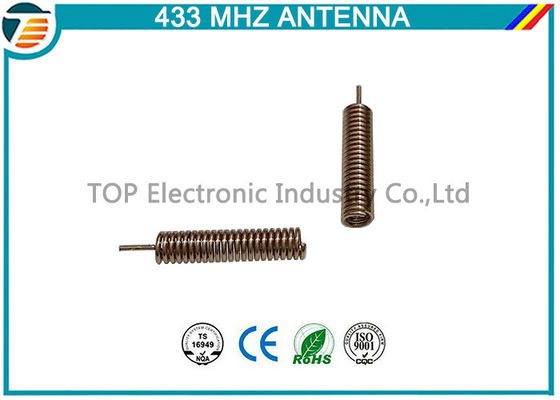

Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size

Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size
Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size

Large Image :  Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size

Product Details:
Place of Origin: Shen Zhen,Guang Dong,China
Brand Name: TOP
Certification: CE,ROHS
Model Number: TOP-433-spring 1
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: $0.15/pcs~$0.2/pcs

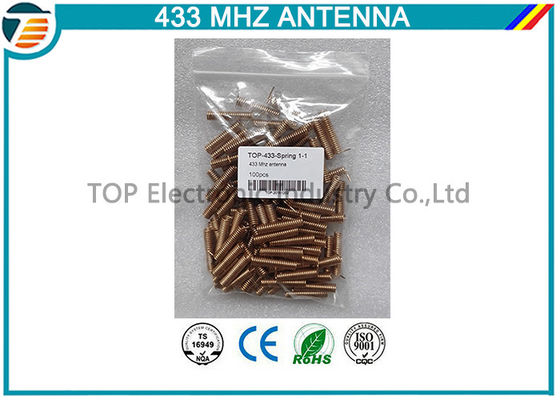

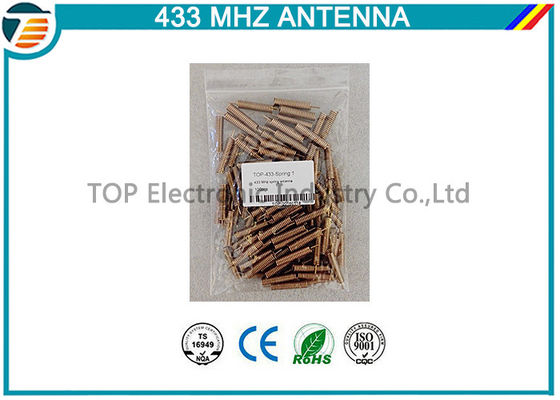

Packaging Details: 100pcs/PE bag
Delivery Time: 3-5 working days after receiving the payment
Payment Terms: T/T, Western Union,paypal
Supply Ability: 40k pcs/month
Detailed Product Description
Product Name: 433 Mhz Antenna Weight: 0.1g

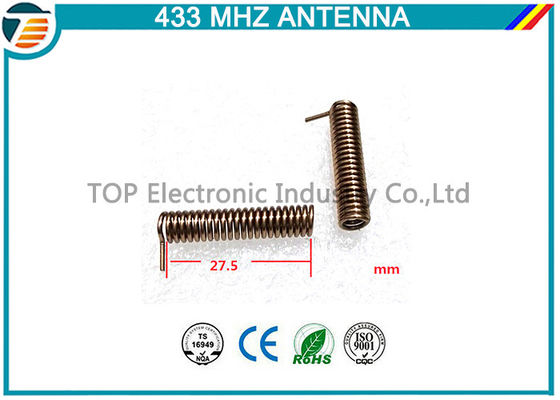

Size: D4*26.8mm / D4*27.5mm Center Frequency: 433 MHZ
Material: Phosphor Copper COLOR: Gold
High Light:

433mhz yagi antenna

,

433mhz transmitter antenna

Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size







Introduction:

Spring antenna in a cost-effective, can be used for a variety of 433MHz wireless device, such as wireless module CC1100 CC1020 NRF905 NRF903 SI4432 and other products, ease of use, performance, and to use soldered directly on the antenna of a wireless module.





Quick Details :



GSM Spring Antenna for cars
Frequency Range 433MHz
V.S.W.R 1.5:1
Impendance 50 ohm

Typical Gain(w/o cable) 2.25 dBi

Weight 1.5g







Specification:



TOP-433-Spring 1

Item

Specifications

Antenna

Center Frequency



433 MHz



Band Width

CF±5MHz

Polarization

Linear

Impendance

50Ω

Gain

2.25 dBi

V.S.W.R

<2.5

Mechanical

Material

Phosphor Copper

Dimension

26.8*Φ4.0 mm

Mounting Method

Welding

Environmental

Vibration

10 to 55Hz with 1.5mm amplitude 2hours

Environmentally Friendly

ROHS Compliant







TOP-433-Spring 1-1

Item

Specifications

Antenna

Center Frequency



433 MHz



Band Width

CF±5MHz

Polarization

Linear

Impendance

50Ω

Gain

2.25 dBi

V.S.W.R

<2.5

Mechanical

Material

Phosphor Copper

Dimension

27.5*Φ4.0 mm

Mounting Method

Welding

Weight:

1.5g

Environmental

Working Temp.

-40°C~+85°C

Color:

Gold/ Silver





Technical indicators


Working frequency: 428 MHZ to 438 MHZ
Standing wave ratio: < = 1.5
Gain(DBI): 2.25
Maximum power: 10 w
Input impedance: 50 ohm
Weight: 1 g
Color: golden
Interface: direct welding



Advantage:

Internal Spring Antenna 433MHz
1. Offer from Factory directly
2. good competitive price
3. quality Approvals
4. good after sale service

5. customized is also acceptable.





Application:

wireless transmitter and receiver, WLAN,





Click here for the data sheet:



TOP-433-Spring 1.pdf

TOP-433-Spring 1-1.pdf

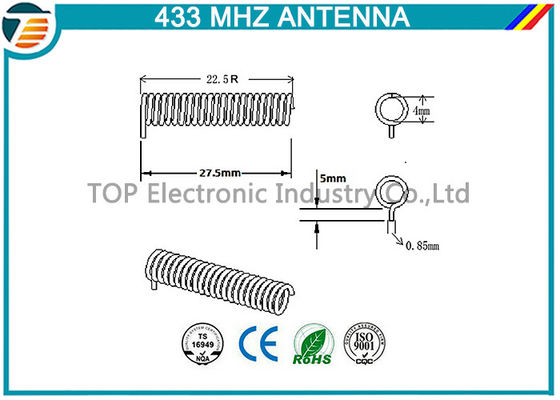

Drawing:



TOP-433-Spring 1

Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size 0











TOP-433-Spring 1-1



Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size 1








Our  Antenna :

---Powerful R&D team

---Wonderful design solution

---Perfect after-sales service

---Strict quality testing

---Rich cooperation experiences with Communication product manufactures

---Competitive price



FAQ

 1. What's the Warranty of the Products?

Answer: In general, all goods with 12 month-warranty after the shipments .



2.  How about the defective rate ?

Answer: Less than 1%.



 3. Where can customers get the Product Specification and other datasheets?

Answer: we will send them via email once get the request from the customers.



 Our high quality products , competitive  price and professional service, be sure to meet your need for all kinds of components.    ^_^
