Product Details:
Payment & Shipping Terms:
|
| Product Name: | 433 Mhz Antenna | Weight: | 0.1g |
|---|---|---|---|
| Size: | D4*26.8mm / D4*27.5mm | Center Frequency: | 433 MHZ |
| Material: | Phosphor Copper | COLOR: | Gold |
| Highlight: | 433mhz yagi antenna,433mhz transmitter antenna |
||

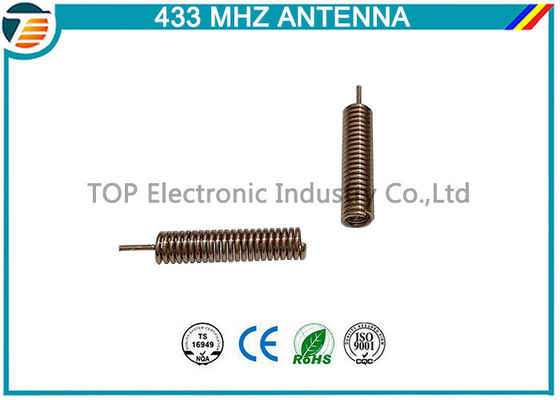

Long Range 433Mhz Antenna Wireless Communication PCB Antenna spring antenna small size
Introduction:
Spring antenna in a cost-effective, can be used for a variety of 433MHz wireless device, such as wireless module CC1100 CC1020 NRF905 NRF903 SI4432 and other products, ease of use, performance, and to use soldered directly on the antenna of a wireless module.
Quick Details :
GSM Spring Antenna for cars
Frequency Range 433MHz
V.S.W.R 1.5:1
Impendance 50 ohm
Typical Gain(w/o cable) 2.25 dBi
Weight 1.5g
Specification:
TOP-433-Spring 1
|
Item |
Specifications |
||
|
Antenna |
Center Frequency |
|
|
|
Band Width |
CF±5MHz |
||
|
Polarization |
Linear |
||
|
Impendance |
50Ω |
||
|
Gain |
2.25 dBi |
||
|
V.S.W.R |
＜2.5 |
||
|
Mechanical |
Material |
Phosphor Copper |
|
|
Dimension |
26.8*Φ4.0 mm |
||
|
Mounting Method |
Welding |
||
|
Environmental |
Vibration |
10 to 55Hz with 1.5mm amplitude 2hours |
|
|
Environmentally Friendly |
ROHS Compliant |
||
TOP-433-Spring 1-1
|
Item |
Specifications |
||
|
Antenna |
Center Frequency |
|
|
|
Band Width |
CF±5MHz |
||
|
Polarization |
Linear |
||
|
Impendance |
50Ω |
||
|
Gain |
2.25 dBi |
||
|
V.S.W.R |
＜2.5 |
||
|
Mechanical |
Material |
Phosphor Copper |
|
|
Dimension |
27.5*Φ4.0 mm |
||
|
Mounting Method |
Welding |
||
|
Weight: |
1.5g |
||
|
Environmental |
Working Temp. |
-40°C~+85°C |
|
|
Color: |
Gold/ Silver |
||
Technical indicators
Working frequency: 428 MHZ to 438 MHZ
Standing wave ratio: < = 1.5
Gain(DBI): 2.25
Maximum power: 10 w
Input impedance: 50 ohm
Weight: 1 g
Color: golden
Interface: direct welding
Advantage:
Internal Spring Antenna 433MHz
1. Offer from Factory directly
2. good competitive price
3. quality Approvals
4. good after sale service
5. customized is also acceptable.
Application:
wireless transmitter and receiver, WLAN,
Click here for the data sheet:
Drawing:
TOP-433-Spring 1
TOP-433-Spring 1-1
Our Antenna :
---Powerful R&D team
---Wonderful design solution
---Perfect after-sales service
---Strict quality testing
---Rich cooperation experiences with Communication product manufactures
---Competitive price
FAQ
1. What's the Warranty of the Products?
Answer: In general, all goods with 12 month-warranty after the shipments .
2. How about the defective rate ?
Answer: Less than 1%.
3. Where can customers get the Product Specification and other datasheets?
Answer: we will send them via email once get the request from the customers.
Our high quality products , competitive price and professional service, be sure to meet your need for all kinds of components. ^_^
