Class 8 Wireless GSM GPRS Module BGS2-E8 Play High Performance

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Class 8 Wireless GSM GPRS Module BGS2-E8 Play High Performance

Product Details:
Place of Origin: China
Brand Name: CINTERION
Certification: CE,ROHS,
Model Number: BGS2-E8
Payment & Shipping Terms:
Minimum Order Quantity: 10 pcs
Price: $11~12$ /PCS
Packaging Details: Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Delivery Time: 2-3 working days after received the payment
Payment Terms: T/T, paypal or western Union
Supply Ability: 2000pcs per month
Detailed Product Description
Product Name: GSM GPRS Module Weight: 110 G
Size: 65 X 74 X 33 Mm Temperature Range: -40℃ To 85℃
Dual-Band: 900 / 1800 MHz Supply Voltage Range: 8~30v
High Light:

gps and gprs module

,

miniature gsm module



Class 8 Wireless GSM GPRS Module BGS2-E8 Play High Performance





BGS2 with 2 version:

BGS2-E : Dual-band

BGS2-W : Quad-band

Perfect M2M at minimal Footprint



Module introduction:

BGS2-E8 GSM/GPRS Modul, Dual-Band GSM/GPRS baseband with TCP/IP connectivity based on GPRS Class 8 data transmission into a compact plug-and-play housing. The robust housing includes a range of common interfaces as well as an integrated SIM cardholder which make the new generation to an all-in-one solution enabling voice, data, SMS and fax communication. The new generation is available as Dual-Band with GPRS Class 8 functionality .





With BGS2-E8 Release 2, the module adds Quad-Band GSM/GPRS with advanced SSL encryption for IP-based services, jamming detection, an analog and digital audio interface and generic flash access to the internal memory of the module. The unique multi-design capabilities of the new release allows seamless migration to the world’s smallest 3G wireless module, supporting HSPA data transmission within a contiguous design framework to assure long-lasting, future-proof M2M applications.



BGS2-E8 comes in two flavors as Quad-Band with GPRS class 10 (BGS2-W) and Dual-Band with GPRS class 10 (BGS2-E8). As is true with all Cinterion modules, the BGS2 includes full type approval (FTA) for global roaming and certification for use with the largest carriers worldwide.



Technical specifications

 GSM Dual-Band 900 / 1800 MHz

 3GPP Release 98

 GPRS multi-slot Class 10/8

 Compliant to GSM phase 2/2+

 Output power:

 Class 4 (2W) for GSM900,Class 1 (1W) for GSM1800, SIM Application Toolkit

 Control via AT commands (Hayes, 3GPP T,   27.007 and 27.005)

 TCP / IP stack access via AT commands

 Internet Services TCP server/ client, UDP, ICMP,DNS, HTTP, FTP, SMTP, POP3,

Supply voltage range: 8 – 30 V,

Operating temperature: -30 °C to +75 °C,

Dimensions: 65 x 74 x 33 mm

 Weight: 110 g,

WEEE, RoHS  and EuP  compliant,

Specifications, GPRS Class 8

 DL: max. 85.6 kbps, UL: max. 21.4 kbps

 Mobile Station Class B,

CSD data transmission up to 14.4 kbps, V.110,

 non-transparent. USSD support, SMS text and PDU mode, cell broadcast

 Fax group 3, Class 1 and Class 2,High quality voice support, Handsfree operation

 FR, HR, EFR and AMR speech codec support

 Integrated TTY modem, Antenna connector FME (male),Plug-in power supply connector

 (6-pole Western jack),Handset analog audio interface

(4-pole Western jack),Mini-SIM card reader, 1.8 V and 3.0 V

 V.24 / V.28 RS-232 interface,(D-sub 9-pole female socket)

Operating status LED, Special features



The BGS2 wireless module features:

Dual-Band 2G (BGS2-E8) GSM 900/1800MHz

GPRS class 10
DL: max. 85.6 kbps,
UL: max. 42.8 kbps (BGS2-W)
UL: max. 21.4 kbps (BGS2-E8)

Full Voice Support

TCP/IP stack access via AT commands

Mounting by solderable pins - no screws, no spacer

Highly compact size

Extended operating temperature range: -40°Cto +85°C



Perfect M2M at

Multi Design Capability

Minimal Footprint

The unique BGS2 footprint, based on LGA technology, offers seamless migration from 2G to 3G within a single design footprint. Compatibility with the world?s smallest HSPA wireless module ensures future-proof and longevity of M2M applications.



Generic Flash Access

The BGS2 module enables the application processor to have a generic access to the internal memory of the module, allowing it to be used either to store voice prompts or to download application software for upgrades.

RLS Monitoring

Radio link stability (RLS) monitoring enables the application to detect jamming attacks, triggering preventive actions to secure the device.



Advantage:

The Cinterion BGS2-E8 module is the most successful 2G LGA wireless module in the market offering full voice capabilities, high speed GPRS data transmission and best-in-class low power consumption, making it an exceptional choice for all-around machine-to-machine communications.

The ultra-compact design offers a minimal footprint perfectly suited to the needs of M2M manufacturers of small, high-volume devices with a focus on reliable and efficient processes.





Application:

With an extended temperature range, the reliable terminals can be used in a wide range of M2M business fields such as metering, remote maintenance, traffic systems, transportation and logistics, and security.

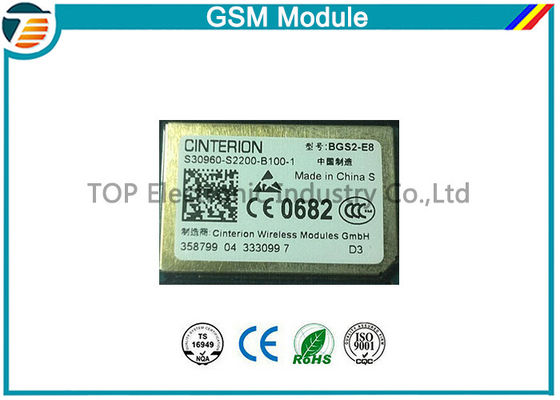

Module display:



Class 8 Wireless GSM GPRS Module BGS2-E8 Play High Performance 0
